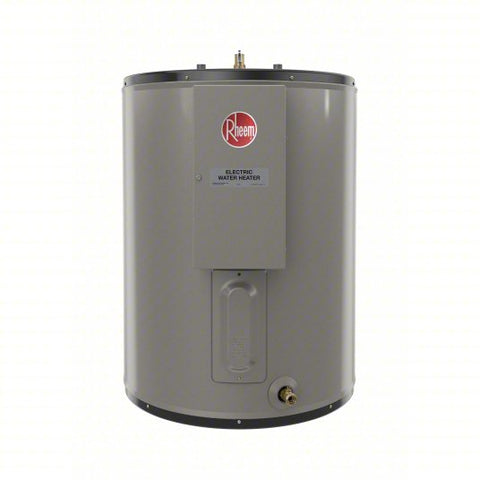

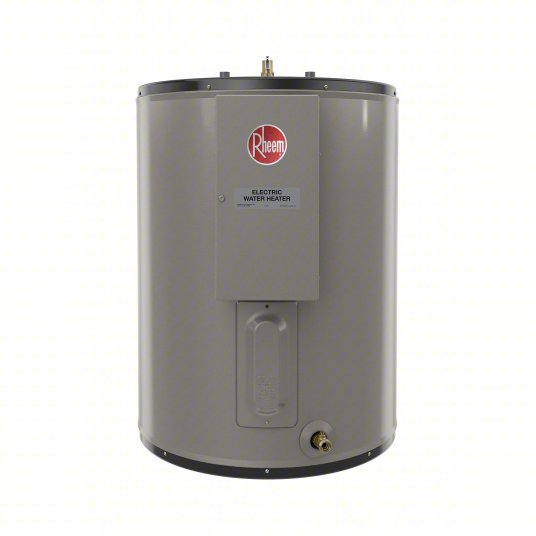

Electric Water Heater: 208V AC, 36 gal, 6,000 W, Single/Three Phase, 31.5 in Ht, 30 gph @ 40°F
- Item
- 792V65
- Mfr. Model
- ELDS40-TB
-
Compact commercial electric water heaters have a smaller footprint than regular water heaters for use where space is limited. They are ideal for low-demand applications where having the hot water source near the point of use is critical.
- Brand
- RHEEM
- Manufacturer Part Number
- ELDS40-TB
- Standards
- AHRI Compliant; CSA Certified; Low Lead Compliant; UL Listed
- Market
- Commercial
- Operating Voltage
- 208V AC
- Manufacturer Warranty Length
- 1 yr Limited Parts; 3 yr Limited Upgradable to 5 yr
- Maximum Recovery Flow Rate
- 30 gph @ 40°F
- Number of Elements
- 2
- Tank Capacity
- 36 gal
- Maximum Water Pressure
- 150 psi
- Overall Width
- 24.3 in
- Overall Depth
- 24 in
- Overall Height
- 31.5 in
- Power Consumption
- 6,000 W
- Phase
- Single; Three
- Recovery Rate @ Rise
- 10 gph @ 120°F; 12 gph @ 100°F; 15 gph @ 80°F; 20 gph @ 60°F
- Thermal Efficiency
- 92 %
- First Hour Rating
- 46 gal
- Tank Diameter
- 24.25 in
- Equivalent BtuH
- 20,274 BtuH
- Element Material
- Copper; Magnesium Oxide
- Tank Outer Shell Material
- Steel
- Tank Outer Shell Finish
- Porcelain Enamel
- Cold Inlet Size
- 3/4 in
- Hot Outlet Size
- 3/4 in
- Automatic Thermostat
- Yes
- Thermostat Mounting
- Surface
- Energy Factor
- 0.92
- Includes
- Brass Drain Valve
- Tank Insulation Material
- Polyurethane
- Minimum Wattage
- 6,000 W
- Cold Inlet Type
- NPT
- Hot Outlet Type
- NPT
- UNSPSC
- 40101826
- Country of Origin
- USA
