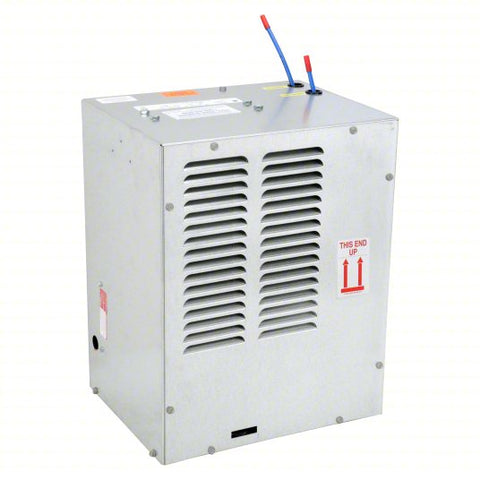

Brand    ELKAY

Chilling Capacity  8 gph @ 50°F

Housing Material  Steel

Housing Finish  Galvanized

Inlet Tube Outside Diameter  1/4 in

Outlet Tube Outside Diameter  1/4 in

Maximum Flow Rate  8 gph

Maximum Supply Line Pressure   105 psi

Minimum Supply Line Pressure   40 psi

Mounting Location  Remote Install

Operating Voltage  115V AC

Overall Depth  10-1/4 in

Overall Height  17-3/8 in

Overall Width   13-1/4 in

Temperature Adjustment   Adjustable

For Number of Fountains   2

Recommended Install Distance   Maximum 15 ft

FeaturesAllows Flexible Installation Location of Refrigeration, Up to 15 ft from Dispensing Location; Converts Any Drinking Fountain into A Water Cooler; Fully Enclosed for Safe Mounting Anywhere; Hermetically Sealed Refrigeration System Provides Chilled Water; Ideal for Permanently Wired Applications; Provides Cool Water for Most Two Station Applications

Manufacturer Part NumberECH8

Refrigerant TypeR134A

StandardsBuy American Act; CAN/CSA C22.2 No. 120; NSF 372 (Lead Free); NSF 61; UL 399

For Station TypeDrinking Fountains

Full Load Current5 A

Manufacturer Warranty Length1 yr Electrical Components and Water System; 5 yr Refrigeration System

EnvironmentIndoor

Power Consumption370 W

Includes Water FilterNo

Product Weight43 lb

Ventilation ClearanceCavity or Behind A Wall: 4 in Each Side, 4 in Above and Below; Open Area: 4 in Each Side

Compressor Horsepower1/4 hp

UNSPSC48101710

Country of OriginUSA
