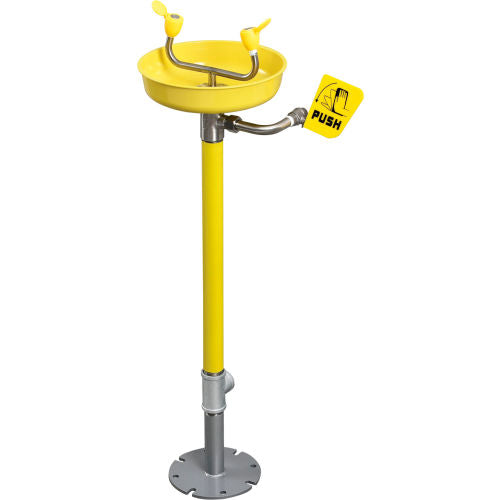

Emergency Eyewash Station, Pedestal Mount
Model #: WB708382
this Eye Wash Station is essential for industrial spaces where accidents can occur with chemicals or hazardous substances. Mounts easily to the floor to provide immediate, reliable and effective treatment in nearby working locations. Equipped with a stay open ball valve that is activated by a push handle, allowing hands free operation once the eyewash has been activated. Dual spray heads feature "flip top" covers to protect from dust particles. Schedule 40 galvanized steel includes safety yellow polyethylene covers for corrosion resistance and easy visibility. Includes ANSI Compliant identification sign. ANSI Z358.1-2014.
Weights & Dimensions
| Weight | 17 lbs |
| Bowl Diameter | 11-1/2 in |
Product Details
| Mounting Location | Pedestal Mount |
| Dust Covers | Yes |
| Material | ABS Plastic/Galvanized Steel/Stainless Steel |
| Manufacturers Part Number | 708382 |
| Eyewash Flow Pressure | 30 psi |
| Fitting Material | Schedule 40 Galvanized Steel |
| Eyewash Activation | Push Handle |
| Waste Fitting | 1-1/4" NPT Female Outlet |
| Bowl Color Family | Yellow |
| Shower Flow Rate | 30 gal/min |
| Type | Eyewash Station |
| Eyewash Handle Material | ABS Plastic |
| Color | Yellow |
| Eyewash Flow Rate | 5.28 gal/min |
| Pipe Material | Schedule 40 Galvanized Steel |
| Number of Heads | 2 |
| Includes | ANSI-Compliant Identification Sign & Eye Wash Gauge |
| Pipe Covering Material | Polyethylene |
| Valve Type | Chrome Plated Stay Open Ball |
| Description | Pedestal Mounted Eyewash |
| Bowl Material | ABS Plastic |
| Supply Fitting | 1/2" NPT Female Inlet |
Compliance & Certifications
| ADA Compliant | No |
| ANSI Certification | ANSI Z358.1-2014 |
