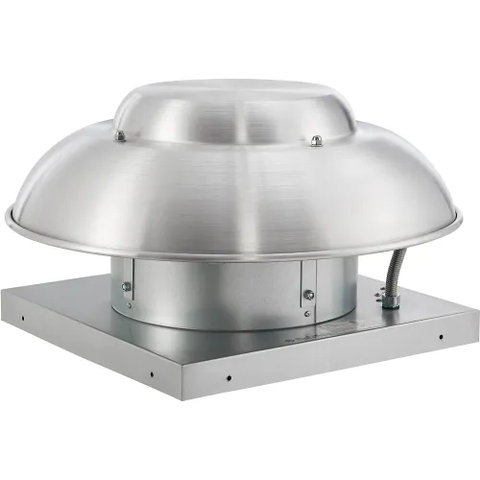

Roof Axial Exhaust Fan, 1160 CFM, 115V
Model #: WB604138
Cost-effective choice for general venting
Weather-resistant aluminum housing
Permanently-lubricated, ball bearing motor
The Global Industrial™ Roof Axial Downblast Exhaust Fan with 1160 CFM helps bring in fresh air to your industrial space. This Roof Axial Downblast Exhaust Fan is suitable for roof or wall installations in most commercial ventilation applications. They are the perfect choice for areas prone to stale air and have little or no duct work to bring in fresh air. Typical applications include: general ventilation and exhaust, mechanical room exhaust, and warehouse exhaust. Roof axial unit is totally enclosed, permanently lubricated, ball bearing motor provides reliable operation. Not designed for exhausting smoke or grease. 1-Year Limited Warranty.
Aluminum housing for weather resistant durability
Aluminum fans blades are riveted to a steel hug
Built-in bird screen protects the discharge
Weight |
45 lbs |
Fan Diameter |
16 in |
Height |
12-5/8 in |
Width |
27-5/16 in |
Length |
21 in |
Product Details
Standard Max Operating Temperature |
110° F |
Horsepower |
1/6 HP |
Hertz |
60 Hz |
Amperage |
2.2 A |
Drive Type |
Direct Drive |
Fan Type |
Axial |
RPM High |
1100 rpm |
Voltage |
115 V |
CFM High |
1160 CFM |
Material |
Aluminum |
Description |
Roof Axial Exhaust Fan |
Manufacturers Part Number |
604138 |
