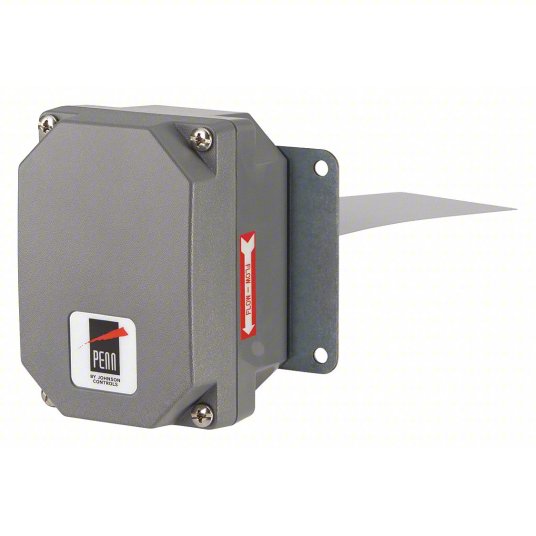

Air Flow Switch: 2-1/8 in x 6-7/8 in Paddle Size, 16.0/8.0
Air flow switches help determine filter status, detect air flow, and control air pressure of your HVAC unit and appliances. Detect air flow in ducts, pipes, and tubes in a variety of industrial applications.
- Brand
- JOHNSON CONTROLS
- Paddle Size
- 2-1/8 in x 6-7/8 in
- Full Load Amps @ 115/230V
- 16.0/8.0
- Switch Type
- SPDT
- Max. Air Velocity
- 2,000 fpm
- Min. Actuation Velocity Horizontal
- 500 fpm (greater than 50 sq in duct area)
- Min. Actuation Velocity Vertical
- 750 fpm (greater than 50 sq in duct area)
- Overall Height
- 4 in
- Overall Width
- 2-3/4 in
- Overall Depth
- 2-5/8 in
- Max. Ambient Temp.
- 104 °F
- Application
- Make-up Air, Exhaust Air Systems and Air Flow Sensing
- Standards
- C-Tick; CE; UL
- UNSPSC
- 39121531
- Country of Origin
- Mexico
- Item
- 35LY69
- Mfr. Model
- F262KDH-01C
