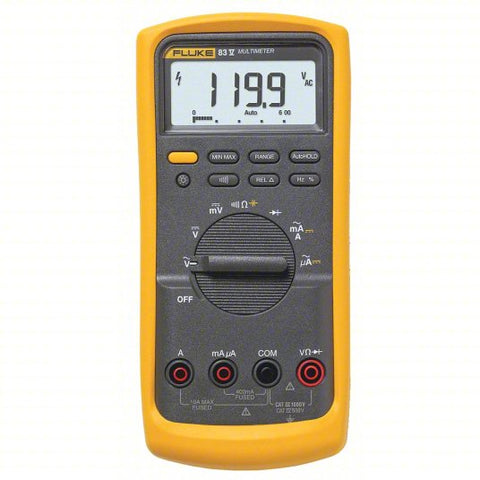

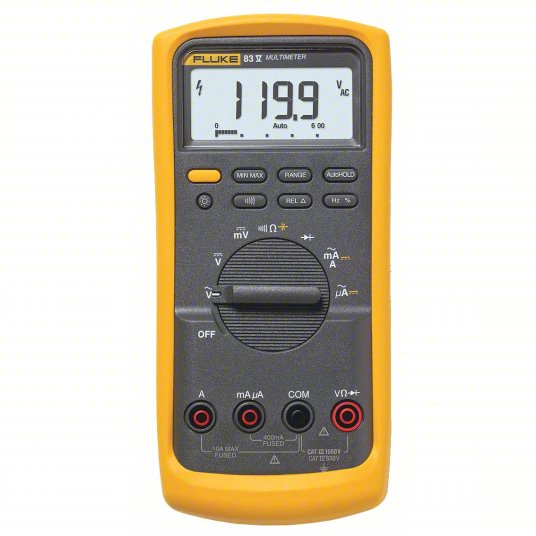

FLUKE Digital Multimeter: CAT III 1000V/CAT IV 600V, Avg, Calibration Certificate Included, 6,000
These instruments have built-in data logging capability that records and stores data without connecting to an external device like a smartphone or PC. Data can later be retrieved and stored for analysis. They are commonly used for field or remote applications.
BrandFLUKE
AC Response CalculationAverage
Instrument Safety RatingCAT III 1000V; CAT IV 600V
Calibration Certificate IncludedYes
Maximum AC Voltage Measurement1,000 V
Maximum DC Voltage Measurement1,000 V
Display TypeLCD
Instrument Counts6,000
Maximum AC Current Measurement10 A
Maximum DC Current Measurement10 A
Multimeter StyleFull Size
Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Conductance
- Frequency
- Resistance
Data LoggingYes
Bluetooth CompatibleNo
DustproofNo
Intrinsically SafeNo
Removable ScreenNo
Thermal ImagingNo
WaterproofNo
Capacitance Measurement Resolution1 nF
Frequency Measurement Resolution0.01 Hz
Basic AC Current Accuracy±(1.2% + 2)
Basic AC Voltage Accuracy±(0.5% + 2)
Basic DC Current Accuracy±(0.4% + 2)
Basic DC Voltage Accuracy±0.10% + 1 Digit
Capacitance Measurement Accuracy±(1% + 2)
Frequency Measurement Accuracy±(0.005% + 1)
Resistance Measurement Accuracy±0.4%
Includes(1 Pair) AC175 Alligator Clips; (1 Pair) TL75 Test Leads; 9V Battery (Installed); Holster; Quick Reference Guide
Manufacturer Part NumberFLUKE-83-5/CWG
Audible ContinuityYes
Data HoldYes
Maximum Resistance Measurement50 megaohm
Diode TestYes
Auto Power OffYes
Auto RangingYes
StandardsANSI/ISA S82.01; CE; EN61010-1; SA; UL
Manufacturers Warranty LengthLifetime
Bar Graph IncludedYes
Battery AccessYes
Battery Size9V
Minimum/Maximum MemoryYes
Computer Interface Connection TypeNone
Weight624 g
Maximum Storage Temperature140 °F
Minimum Storage Temperature-40 °F
Maximum Operating Temperature131 °F
Minimum Operating Temperature-4 °F
Duty CycleYes
Maximum Capacitance Measurement9,999 uF
Maximum Frequency Measurement200 kHz
Maximum Temperature Measurement1,194 °F
Minimum Temperature Measurement-238 °F
Peak HoldYes
Battery ChemistryAlkaline
Depth2 in
Overall Height7.9 in
Overall Width3.9 in
Software IncludedNo
Fuse AccessYes
Min-Max-Avg Button IncludedYes
Minimum Frequency Measurement0.01 Hz
Minimum Capacitance Measurement1 nF
Batteries IncludedYes
UNSPSC41113630
Country of OriginUSA
Item 4EB20
Mfr. Model FLUKE-83-5/CWG
