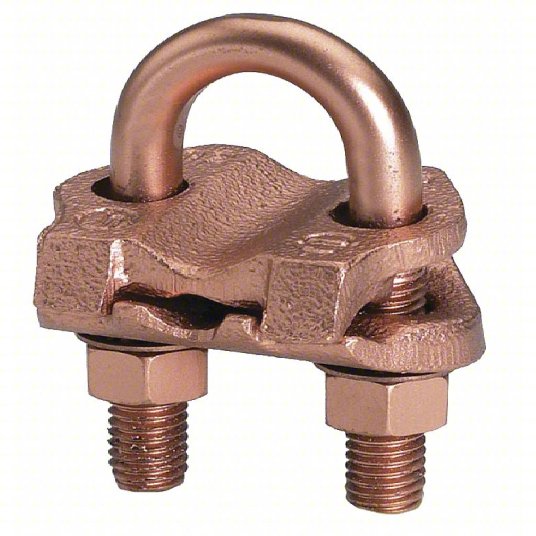

Grounding Connector: Copper, 4 to 2/0 AWG SOL/4 to 2/0 AWG STR Grounding Wire Size
These ground clamps use a U-bolt to make perpendicular or parallel connections of conductors to both water pipe and grounding rods. The U-bolt fits over the pipe or rod and tighten down with screws. These clamps are suitable for direct-burial applications.
Brand BURNDY
Grounding Wire Size
- 4 to 2/0 AWG SOL
- 4 to 2/0 AWG STR
Grounding Wires Connected To#9 to #10 Rebar; 1 1 /8 in to 1-1/4 in Rod; 1 in Pipe
Material Copper
For Maximum Pipe Size 1 in
Number of Grounding Wires 1
Description/Special FeaturesDirect Burial; Rebar #9-#10
For Use With Copper Conductors; Ground Rods; Pipes; Rebar
Overall Length 1-9/16 in
Type - Grounding Connector Mechanical
Item Grounding Connector
Manufacturer Part Number GAR1526
StandardsUL Listed Direct Burial ; UL467
Accessory Type Grounding Connector
Sub-brand SERVIT
For Minimum Ground Conductor Wire Size 4 AWG SOL
For Maximum Ground Conductor Wire Size 2/0 AWG STR
For Minimum Pipe Size 1 in
Overall Height 2-7/8 in
Overall Width 2-5/8 in
Torque 240 in-lb
For Rod Diameter 1-1/8 in to 1-1/4 in
Displayed Brand BURNDY
Package Quantity 1
UNSPSC 39121408
Country of OriginUSA
Item 22A968
Mfr. Model GAR1526
