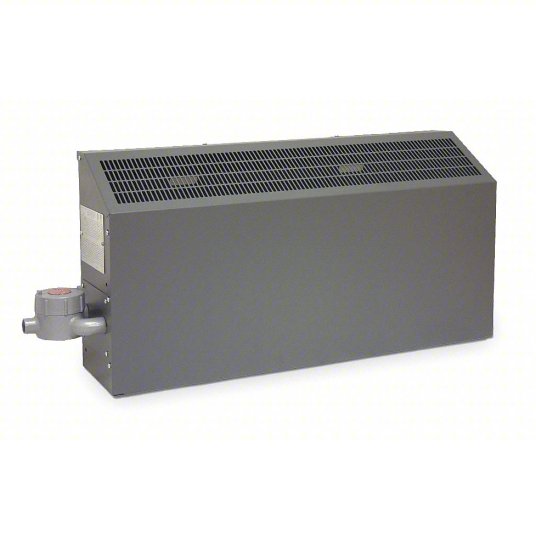

Hazardous-Location Electric Heater: 7.6 kW Watt Output, 25,938 BtuH Heating Capacity
Hazardous-location electric cabinet wall heaters use convection heating to warm the air and don't have moving parts, so they're quieter than unit heaters. They're used in hazardous industrial environments like petroleum refineries, gasoline storage areas, petrochemical facilities, and dry cleaning plants. They mount on the wall to free up floorspace. These heaters do not have a thermostat.
Brand MARKEL PRODUCTS
Overall Height 18 in
Overall Width 64 in
Overall Depth 9 in
Cabinet Height 18 in
Cabinet Width 58 in
Cabinet Depth 9 in
Voltage 480V AC
Phase 3
Wattage Output 7.6 kW
Hazardous Location RatingClass I, Groups B, C and D, Division 1 and 2
Housing Color Gray
Housing Finish Powder Coated Epoxy Paint
Housing Material Steel
Heating Method Convection
Heating Capacity25,938 Btu H
Control Type Thermostat
Contactor Coil Voltage 120V AC
Amperage 9.2 A
Frequency 50/60 Hz
Manufacturers Warranty Length 1 yr
Includes Mounting Bracket
Standards ETL Listed for US and Canada
Thermostat Included No
UNSPSC40101819
Country of OriginUSA
Item 49CT99
Mfr. Model FEP-7648-3RA
