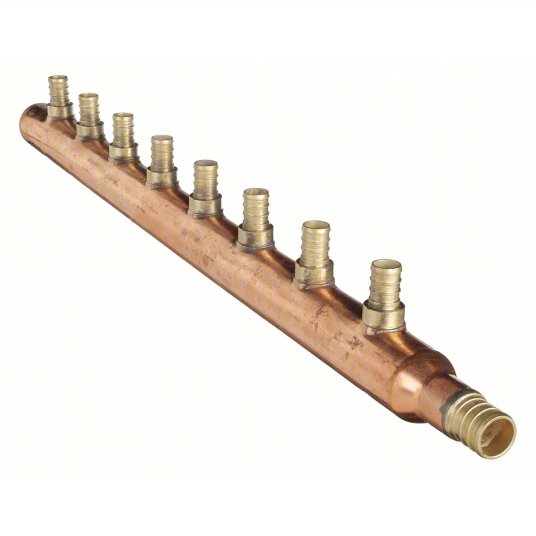

Manifold: Copper, 3/4 in Barb Inlet, 1/2 in Barb Outlets, 8 Outlets, 1 Inlets
These manifolds are for PEX tubing in plumbing or radiant heating applications. They meet NSF standards for use in systems delivering potable (drinking) water. Manifolds reduce the number of required connections which reduces system assembly time.
Brand ZURN PEX
For Use On PEX Tube
Inlet Connection Size3/4 in
Inlet Connection TypeBarb
Inlet Fitting Material Brass
Manifold Material Copper
Maximum Operating Pressure 160 psi
Maximum Operating Temperature 200 °F
Minimum Operating Temperature 73 °F
Number of Inlets 1
Number of Outlets 8
Outlet Connection Size 1/2 in
Outlet Connection Type Barb
Outlet Fitting Material Eco Brass
Overall Height 1.88 in
Overall Length 18.75 in
Overall Width 1.25 in
StandardsAnnex G; ASTM F1807; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI 61
Outlet Spacing 2 in
Inlet Dash Size 1
Outlet Dash Size 1
UNSPSC 40141720
Country of Origin South Korea
Item 10A641
Mfr. Model QCM43-8GX
