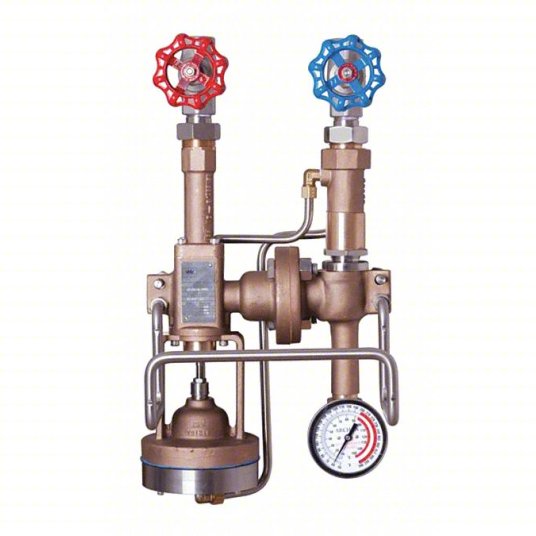

Hose Station: 3/4 in Pipe Size, FNPT x FNPT, 10 in Lg, 18 in Ht, Bronze, Bronze Finish

  • Sale
  • $2,443.00


Hose Station: 3/4 in Pipe Size, FNPT x FNPT, 10 in Lg, 18 in Ht, Bronze, Bronze Finish

Hose stations, also known as mixing stations, are used in many industrial washdown applications including dairy, food processing, manufacturing, and pharmaceutical plants. The stations are comprised of steam- and water-mixing valves for water temperature control, and an accompanying rack for hose access and storage.

Brand  ARCHON INDUSTRIES, INC.
Pipe Size   3/4 in
Max. Flow Rate   9 gpm
Height  18 in
Width  10-1/2 in
Length   10 in
Connection Type  FNPT x FNPT
Max. Water Pressure   80 psi
Max. Steam Pressure   150 psi
Temp. Range   60° to 200°F
Dial Range  50° to 300°F
Material  Bronze
Finish   Bronze
Hose Rack Material  Stainless Steel
Valve Material  Bronze
UNSPSC  40142007
Country of Origin  USA
Item    491J42
Mfr. Model WD2010SBR
