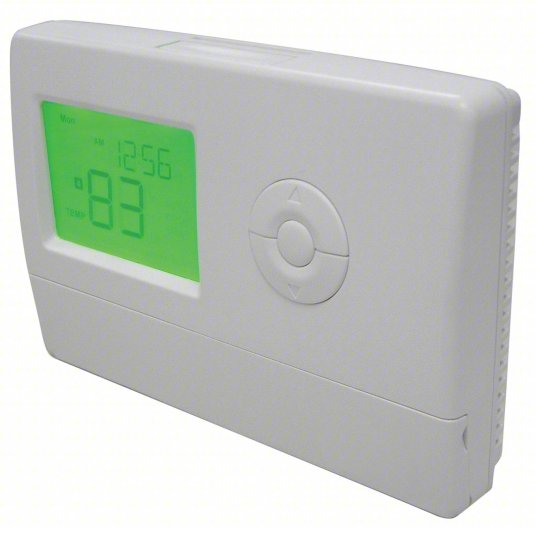

Low Voltage Thermostat: Heat and Cool, Auto and Manual, B/C/E/W1/G/L/O/R/W2/Y1, 7 Day, Adj
Standard thermostats are most commonly used to control the temperature of conventional forced air systems or heat pumps in residential and light commercial settings, such as offices, restaurants, or retail stores. They're programmable and allow users to select temperature settings for different times of the day or different days of the week.
- Brand
- DAYTON
- Application
- Heat and Cool
- Changeover Type
- Automatic and Manual
- Compatible System Type
- Electric Forced Air Furnaces; Fan Coil Units; Gas Forced Air Furnaces; Heat Pump with Aux; Hydronic Systems; Millivolt; PTAC
- Control Type
- Push Button
- Dehumidification Control
- No
- Differential Type
- Adjustable
- Digit Size
- Standard
- Display Type
- Digital
- Dual Transformer Compatible
- Yes
- Fan Settings
- Auto-On-Circulate
- Humidification Control
- No
- Includes
- Mounting Hardware
- Includes Positive Off
- Yes
- Key Pad Lockout
- Yes
- Mounting Direction
- Horizontal
- Minimum Control Temperature
- 45 °F
- Maximum Control Temperature
- 95 °F
- Number of Cooling Stages - Conventional System
- 1
- Number of Heating Stages - Conventional System
- 2
- Number of Cooling Stages - Heat Pump System
- 1
- Number of Heating Stages - Heat Pump System
- 2
- Number of Zones
- 3
- Overall Depth
- 1-1/4 in
- Overall Height
- 3-3/4 in
- Overall Width
- 5-1/2 in
- Programming Capability
- 7 Day
- Shape
- Rectangle
- System Settings
- Auto-Cool-Heat-Off
- Temperature Differential
- 1.5°F
- Temperature Readout
- Yes
- Temperature Scale
- Fahrenheit/Celsius
- Terminal Designations
- B; C; E/W1; G; L; O; R; W2; Y1
- Thermostat Type
- Low Voltage
- Voltage
- 24V AC
- Temperature settings per day
- 4
- Backlit Screen
- Yes
- Backlit Screen Color
- Green
- Backlit Type
- Touch Activated
- Battery Backup
- Yes
- Battery Type
- (2) AA Batteries
- Differential Cool
- 2 °F
- Differential Heat
- 2 °F
- Electrical Connection Type
- Screw Terminals
- Filter Change Reminder
- Yes
- Frequency
- 50 Hz; 60 Hz
- Housing Color
- White
- Includes Batteries
- Yes
- Low Battery Indicator
- Yes
- Minimum Operating Humidity
- 5 %
- Maximum Operating Humidity
- 95 %
- Minimum Operating Temperature
- 45 °F
- Maximum Operating Temperature
- 95 °F
- Millivolt Compatible
- Yes
- Number of Relay Inputs
- 3
- Number of Relay Outputs
- 5
- Occupancy Sensor
- No Occupancy Sensing
- Pilot Duty Rating
- 24V AC
- Requires C-Wire
- No
- Screen Height
- 1-3/8 in
- Screen Width
- 2-1/8 in
- Sensor Location
- Built-In
- Sensor Type
- Bi-Metallic Spring
- Smart Connectivity
- No Connectivity
- Temperature Limiting
- No
- Temperature Sensitivity
- +/-1.5°F
- Temporary Program Override
- Yes
- Temporary Temperature Hold
- Yes
- Wireless
- Yes
- Mounting Location
- Wall
- Mounting Type
- Surface Mount
- UNSPSC
- 41112209
- Country of Origin
- China
- Item
- 6EEA0
- Mfr. Model
- 6EEA0
