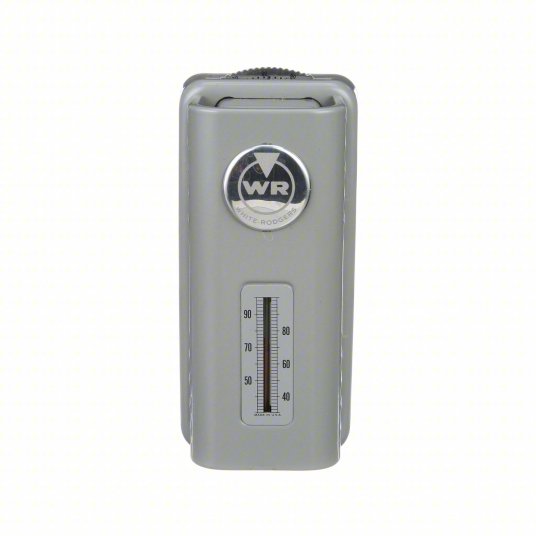

  • EMERSON Line Volt Mechanical Tstat: Electric Heating

Analog thermostats are the most basic line-voltage thermostat option and use a dial to set the temperature of a space. These mechanical thermostats are often used in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.

BrandEMERSON
  • ApplicationHeat Only
    Compatible System TypeElectric Heating
    Control TypeConcealed Dial
    Differential TypeFixed
    Display TypeAnalog
    Fan SettingsNo Fan Setting
    Housing ColorGray
    Housing MaterialSteel
    Includes Positive OffNo
    Maximum Control Temperature90 °F
    Minimum Control Temperature40 °F
    Mounting DirectionVertical
    Number of Heating Stages1
    Overall Depth2-1/4 in
    Overall Height4-1/2 in
    Overall Width4-1/2 in
    Switch ActionOpen on Rise
    Switch TypeSPST
    System SettingsOn
    Temperature Differential3°F
    Temperature ReadoutYes
    Temperature ScaleFahrenheit
    Thermostat TypeLine Voltage
    Voltage120 to 240V AC
    Contact Rating120V AC; 240V AC
    Contact Rating Resistive @ 120V25 A
    Contact Rating Resistive @ 240V20 A
    Enclosure ColorGray
    Full Load Amps @ 120V AC14 A
    Full Load Amps @ 240V AC7 A
    IncludesConcealed Temperature Dial with Locking Case to Prevent Unauthorized Adjustment
    Inductive Amps @ 120V14 A
    Inductive Amps @ 240V7 A
    Locked Rotor Amps @ 120V25 A
    Locked Rotor Amps @ 240V22 A
    Number of Poles1
    Number of Switches1
    Remote Control FunctionsNo Remote Control Included
    StandardsCSA Certified; UL Listed
    Temperature Sensitivity+/-2°F
    Mounting LocationJunction Box; Wall
    Mounting TypeRecessed Mount; Surface Mount
    UNSPSC41112209
    Country of OriginMexico
