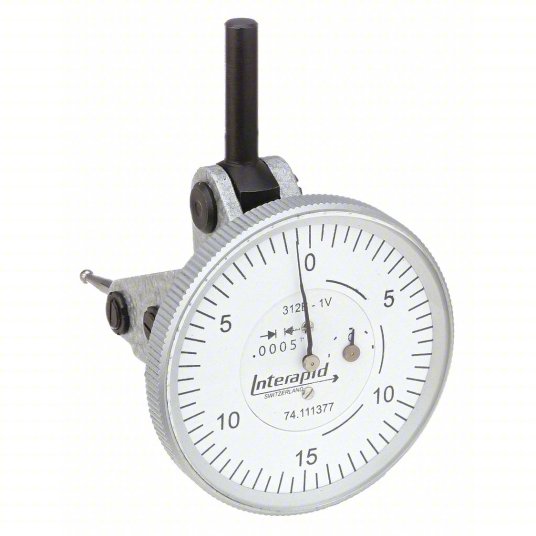

Vertical Dial Test Indicator: Vertical, 0 in to 0.06 in Range, 1.5 in Dial Size
Item 5RCL3
Mfr. Model 312B-1V
vertical dial indicators are built with the dial positioned on top of the body of the indicator so it can be read from above. This vertical positioning ensures the indicator can be read in any position. They are commonly used to find the centerline on a workpiece on a milling machine or other applications where the indicator will rotate such that a horizontal side reading is difficult or not possible.
Brand TESA BROWN & SHARPE
Range 0 in to 0.06 in
Graduations 0.0005 in
Long Form Calibration Certificate No
Contact Point Dia.2 mm
Dial Color Black
Dial Reading 0-15-0
Dial Size 1.5 in
Dimension Type Inch
Included Certification Declaration of Conformity
Includes Dovetail Mount Attachments Yes
Maximum Measurement - Inch0.06 in
Minimum Measurement - Inch0 in
Number of Indicators1
Operation Type Lever-Style
Test Indicator Style Vertical
Accuracy±0.0005 in
Bearing Type Jeweled
Contact Point Material Steel
Includes2 mm diameter Hardened Steel Insert; Key Wrench
Mounting Style Dovetail
Non-Magnetic Tip No
Stem Thread SizeM1.7
Stylus Length0.5 in
UNSPSC41111917
Country of Origin Switzerland
