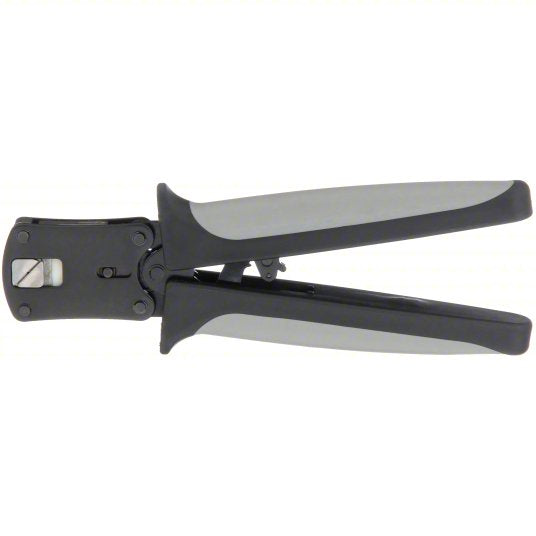

PANDUIT Crimper: Insulated Single Ferrules/Insulated Twin Ferrules/Non-Insulated Single Ferrules
The controlled-cycle mechanism of these ferrule crimpers ratchets the jaws, crimping to a preset depth and applying pressure evenly for repeatable results without overcrimping. Also known as full-cycle crimpers, they release the jaws after each crimping cycle. They form stronger, more uniform crimps than crimping pliers.
Brand PANDUIT
For Connector Type
- FSD
- FSDX
- FSDXL
- FTD Series Ferrules
- Loose Piece F Connectors
Terminal ProfileSquare Crimp
Crimping Capacity26 AWG; 24 AWG; 22 AWG; 20 AWG; 18 AWG; 16 AWG; 14 AWG; 12 AWG; 10 AWG; 8 AWG
Includes Crimping DieYes
Overall Length7-3/4 in
Grip StyleDeluxe Cushion
IncludesDie
AdjustabilityAutomatic
Crimper StyleCrimper Tool
Includes Wire CutterNo
Includes Wire StripperNo
InsulatedNo
Maximum Compatible Wire Size 8 AWG
Minimum Compatible Wire Size 26 AWG
Manufacturer Part Number CT-1123
Maximum Crimping Capacity 8 AWG
Minimum Crimping Capacity 26 AWG
UNSPSC 27111518
Country of Origin Germany
Item 38YU67
Mfr. Model CT-1123
