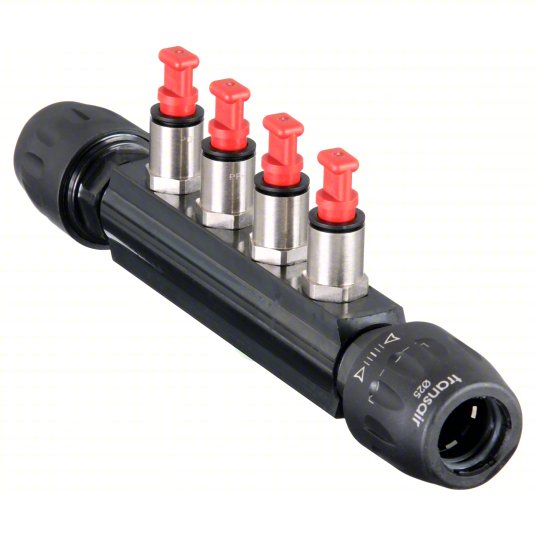

Port Manifold: Inline, Brass, 4 Outlets, 7/8 in Female BSPP inlet, 15/32 in Female BSPP Outlet
- Item
- 20CM58
- Mfr. Model
- 6651 25 12 04GR
-
These manifolds come with fittings to connect to aluminum pipe and distribute compressed air. They are designed to work with TransAir components in food and beverage processing, packaging, and automotive assembly applications.
- Brand
- TRANSAIR
- Flow Direction
- Inline
- For Fluid Type
- Air; Gas; Vacuum
- For Use On
- Transair Aluminum Pipe
- Inlet Connection Gender
- Female
- Inlet Connection Size
- 7/8 in
- Inlet Connection Type
- BSPP
- Manifold Material
- Brass
- Maximum Operating Pressure
- 232 psi
- Maximum Operating Temperature
- 185 °F
- Minimum Operating Temperature
- -4 °F
- Number of Inlets
- 2
- Number of Mounting Holes
- 0
- Number of Outlets
- 4
- Outlet Connection Gender
- Female
- Outlet Connection Size
- 15/32 in
- Outlet Connection Type
- BSPP
- Outlet Spacing
- 1-3/8 in
- Overall Height
- 3.39 in
- Overall Length
- 10.66 in
- Overall Width
- 1.97 in
- Standards
- ASME B31.1 - 31.9; CE Certified; EN 573.3; EN 755.2; EN 755.8; ISO 8573 (Air Quality); ISO 9001; TUV Certification
- UNSPSC
- 27131601
- Country of Origin
- France
