Reset Volume Controller: 3000 Series, Direct/Reverse Acting, Normally Open or Normally Closed

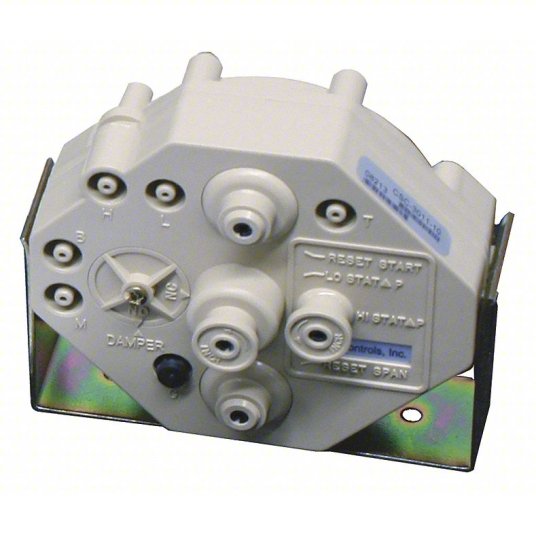

Reset volume controls connect to a pneumatic thermostat or other pneumatic device and control the airflow through a VAV (variable air volume) box. They act as sub-controllers for the thermostat and interpret the pneumatic signal to optimize airflow for their HVAC branch.
Item 4DEA1
Mfr. Model CSC-3021-10
Brand KMC CONTROLS
Series 3000
Manufacturer Part Number CSC-3021-10
Controller Action Direct/Reverse Acting
Damper Action Normally Open or Normally Closed
Thermostat Required for Heating Direct/Reverse Acting
Thermostat Required for Cooling Direct/Reverse Acting
Minimum Setpoint Range0 to 1 in wc
Maximum Setpoint Range Min to 1 in wc
Reset Start Point Factory Setting3 psi
Reset Start Point Range0 to 10 psi
Air Consumption @ 20 psi28.8 scim
Maximum Signal Pressure6 in wc
Minimum Differential Pressure Setting0 in wc
Maximum Differential Pressure Setting1 in wc
Output Sensitivity5 psi / 0.02 in wc
Output Pressure Capability0 to Supply Pressure
Minimum Operating Temperature40 °F
Maximum Operating Temperature120 °F
Mounting Orientation Horizontal; Vertical
Mounting Hole Diameter3/16 in
Air Inlet Type Push-On
Air Inlet Size1/4 in
Housing Color Beige
Housing Materia lPlastic
Application Variable Air Volume
Weight0.69 lb
Includes Mounting Bracket
Standards RoHS Compliant
UNSPSC41112404
Country of Origin USA
