BrandTRIPLETT

Frequency Range2.4 GHz to 5.85 GHz

Frequency Span

• 0 Hz (Zero Span)
• 200 kHz to 2 GHz (Step) and 3.3 GHz (Full Span)

Frequency Accuracy2.4-2.485 GHz +/- 45 kHz; 5.15-5.85 GHz +/- 150 kHz

Frequency Resolution2.4 GHz; 5 GHz

Amplitude Setting Range-95 to 0dBm (1dB Step)

Input Attenuator Range0 to 25dB (1dB Step)

Video Bandwidth100 Hz to 1 MHz (Step) and AUTO

Sweep Range10 msec to 30 sec

Sweep Accuracy+/- 1 Dot from 5.15 to 5.85 GHz; +/- 0.2% +/-1 Dot from 0 to 2.42 GHz

DisplayLCD

FeaturesAdvanced Filters Include: Select Specific Wireless Channel, Adjustable RSSI View Range, Focus In On A Single Ap By Mac Address, Show Broadcast Type (n, G, Ac, Etc.); Advanced Filters Include: Select Specific Wireless Channel, Adjustable RSSI View Range, Focus In On A Single Ap By Mac Address, Show Broadcast Type (n, G, Ac, Etc.), Show Channel Number. Snapshot Feature Instantly Shows You: Ssids Detected, Aps Detected, Channels, Non-Overlapping Channels Open. Table View Includes: Custom Sort and Hold Functions, Type of Ap (e.g., Ruckus, Ubiquiti, Cisco, Etc), Screen Capture to Add Data to Your Reports, Document Your Findings. Create Custom Reports: Full-Color, Custom-Branded to Your Company, Include Captured Data, Clients & Location Details, Send Completed Reports to Your Clients Instantly, No Need for Subscribing to A Cloud Software or Connecting to A Computer. Designed for Live Environments: Detect and Isolate Problems That Impact The Quality of Your Wireless Environments, Exposing Crowded Networks and Noisy Interferences, Including Bluetooth, Microwaves and More. Perfect for Initial Site Surveys to Optimize Channel and Power Settings; Detect and Isolate Problems That Impact The Quality of Your Wireless Environments; Exposes Crowded Networks and Noisy Interferences, Including Bluetooth, Microwaves and More. Perfect for Initial Site Surveys to Optimize Channel and Power Settings; Show Channel Number; Snapshot Feature Instantly Shows You: Ssids Detected, Apps Detected, Channels, Non-Overlapping Channels Open; Table View Includes: Custom Sort and Hold Functions, Type of Ap (e.g., Ruckus, Ubiquiti, Cisco, Etc), Screen Capture to Add Data to Your Reports, Document Your Findings. Create Custom Reports: Full-Color, Custom-Branded to Your Company, Include Captured Data, Clients & Location Details, Send Completed Reports to Your Clients Instantly

InterfaceUSB

Power SourceLithium-Ion Battery or  AC Adapter

Input ConnectorType N

IncludesAC Adapter; Carrying Case  ; Charger

Manufacturers Warranty Length  1 yr

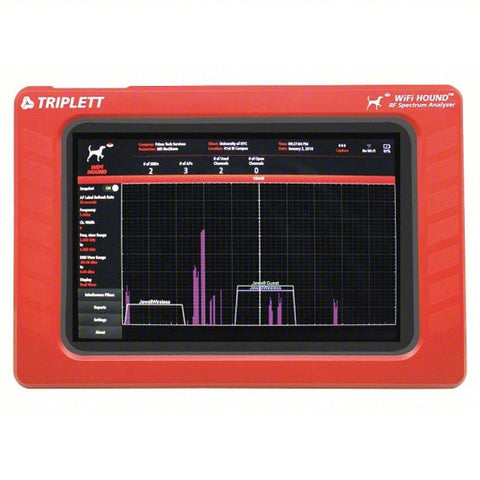

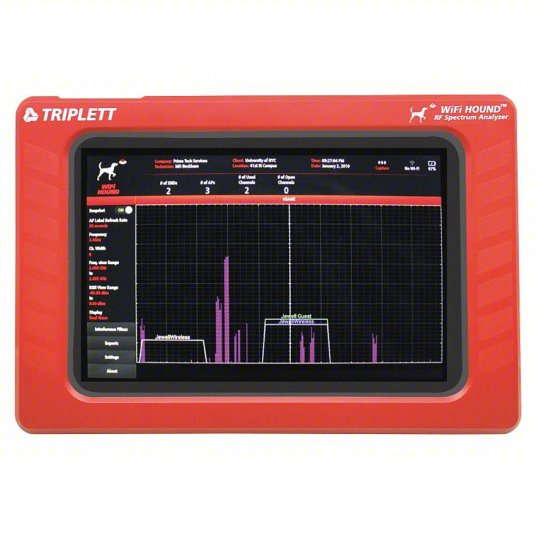

Product Type  Portable RF Spectrum Analyzer

UNSPSC  41115403

Country of Origin US
