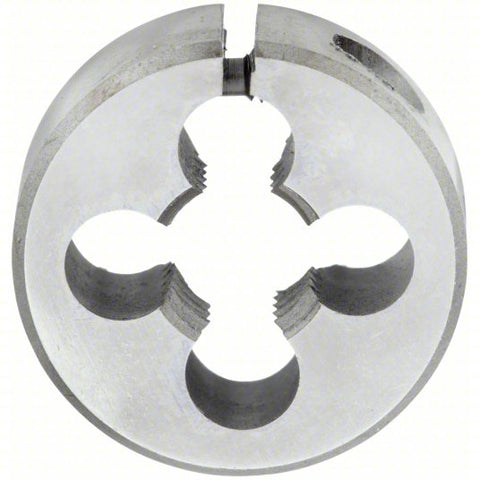

Round Threading Die: Adj, High Speed Steel, Right Hand, M14x2 Thread Size
High-speed steel adjustable round dies have a set screw that adjusts the thread depth to over- or under-cut threads for a precise fit. They stay sharper longer than carbon steel dies and are used for creating new external threads on parts made from a variety of materials, including steel and nonferrous metals.
Brand GREENFIELD THREADING
Die Shape Round
Die Material High Speed Steel
Finish - Machining Bright (Uncoated)
Thread Type Metric
Thread Standard Metric
Thread Size M 14x2
Thread Pitch 2.00mm
Thread Direction Right Hand
Outside Dia. 38.10mm
Overall Length 38.10mm
Die Type Adjustable
Die Thickness 12.70 mm
Primary Material Application All Materials
Primary Material Application ISO Code H; K; M; N; P; S
Secondary Material Application Stainless Steel
Secondary Material Application ISO Code M
For Tool TypeRound Adjustable Dies; Threading
Includes Die
Integrated Handle No
Die Thread Size M14x2.00
UNSPSC 23153305
Country of OriginUSA
Item 434R68
Mfr. Model 415880
