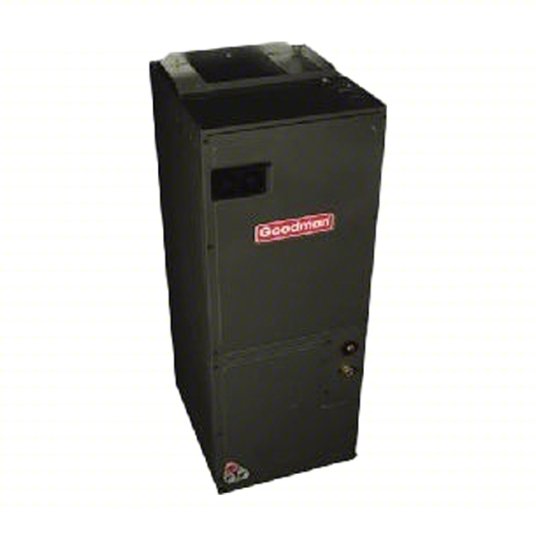

Air Handler: 24,000 BtuH, 2 ton, 1,105 cfm @ 0.5 in wc, 208-230V AC, 1 Phase, 9 Speeds, 15 A
Air handlers with coils install into an HVAC system and cool the airstream as the system is running. This provides climate control and some dehumidification to the interior space. These units consist of a housing that contains a blower, blower motor, and evaporator coils.
Brand GOODMAN
Nominal Cooling Capacity (Tons)2 ton
Nominal Cooling Capacity (BtuH)24,000 Btu H
Maximum Airflow1,105 cfm @ 0.5 in wc
Motor Horsepower 3/4 hp
Motor Type Electronically Commutated
Nameplate Voltage208-230V AC
Phase1
Frequency 60 Hz
Current15 A
Number of Speeds 9
Electric Heater CompatibleYes
Fuse Rating3 A
Expansion Device Type Expansion Valve
Refrigerant TypeR410A
Coil Connection TypeFPT
Housing MaterialAluminum
Suction Line Size3/4 in
Liquid Line Size3/8 in
Return Air Opening Width 12-1/2 in
Return Air Opening Depth 19-1/2 in
Supply Opening Width 16-5/16 in
Supply Opening Depth 11-5/16 in
Coil Drain Connection Size 3/4 in
Overall Height 45 in
Overall Width 17-1/2 in
Overall Depth 21 in
Manufacturer Part Number AMST24BU1400
Manufacturer Warranty Length 10 yr
Standards AHRI Certified; ETL Listed
Features7 mm Evaporator Coil Tube Size on 1-1/2 to 3-1/2 Ton Models and 3/8 in Evaporator Coil Tube Size on 4 to 5 ton Models; Coil Mounting Track for Quick Repositioning; Internal Factory-Installed Thermal Expansion Valves for Cooling and Heat
Pump Applications
Item 803DZ6
Mfr. Model AMST24BU1400
