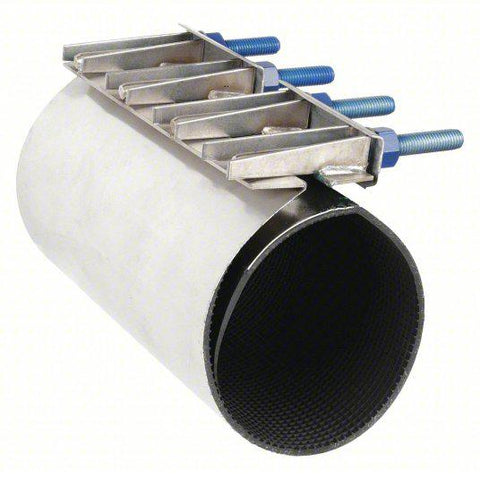

Repair Clamp: For 6 in Pipe, 15 in Overall Lg, 304 Stainless Steel
- Item
- 4NWU6
- Mfr. Model
- 26100066315000
-
- Brand
- SMITH-BLAIR
- Bolt Material
- 304 Stainless Steel
- Gasket Material
- Nitrile Rubber
- For Pipe Size
- 6 in
- Maximum Operating Pressure
- 150 psi
- Maximum Vacuum Pressure
- 10 psi
- Overall Length
- 15 in
- Full Circle
- Yes
- Outlet Connection
- No
- Minimum Operating Temperature
- -20 °F
- Maximum Operating Temperature
- 180 °F
- Standards
- NSF 61
- Product Type
- Full Coverage Clamp
- Gasket Coverage
- Full Coverage
- Number of Bolts
- 4
- For Maximum Copper Tube Size
- 6 in
- For Minimum Copper Tube Size
- 2 in
- Features
- 360º Gasket Seal Provides Support and Reinforcement; Can be used to Repair Pipe or Join Pipe Ends; Keeper Bar Helps Pull Clamp Around the Pipe and Closes the Clamp During Installation; Range up to 0.40 in
- Lug Material
- Stainless Steel
- Bolt Diameter
- 5/8 in
- Bolt Length
- 7 in
- Clamp Material
- Stainless Steel
- Clamp Material Grade
- 304
- For Maximum Outside Diameter
- 6-15/16 in
- For Minimum Outside Diameter
- 6-9/16 in
- UNSPSC
- 40142322
- Country of Origin
- USA
Item 4NWU6
Mfr. Model 26100066315000
Brand SMITH-BLAIR
Bolt Material 304 Stainless Steel
Gasket Material Nitrile Rubber
For Pipe Size 6 in
Maximum Operating Pressure 150 psi
Maximum Vacuum Pressure 10 psi
Overall Length 15 in
Full Circle Yes
Outlet Connection No
Minimum Operating Temperature -20 °F
Maximum Operating Temperature 180 °F
Standards NSF 61
Product Type Full Coverage Clamp
Gasket Coverage Full Coverage
Number of Bolts4
For Maximum Copper Tube Size 6 in
For Minimum Copper Tube Size 2 in
Features360º Gasket Seal Provides Support and Reinforcement; Can be used to Repair Pipe or Join Pipe Ends; Keeper Bar Helps Pull Clamp Around the Pipe and Closes the Clamp During Installation; Range up to 0.40 in
Lug Material Stainless Steel
Bolt Diameter 5/8 in
Bolt Length 7 in
Clamp Material Stainless Steel
Clamp Material Grade 304
For Maximum Outside Diameter 6-15/16 in
For Minimum Outside Diameter 6-9/16 in
UNSPSC 40142322
Country of Origin USA
These repair clamps are lined with a full gasket that wraps around the tube or pipe for 360° coverage sealing breaks, holes, or cracks in a damaged section. They are installed by bolting and tightening the clamp ends together which seals the gasket against the tube or pipe surface.
