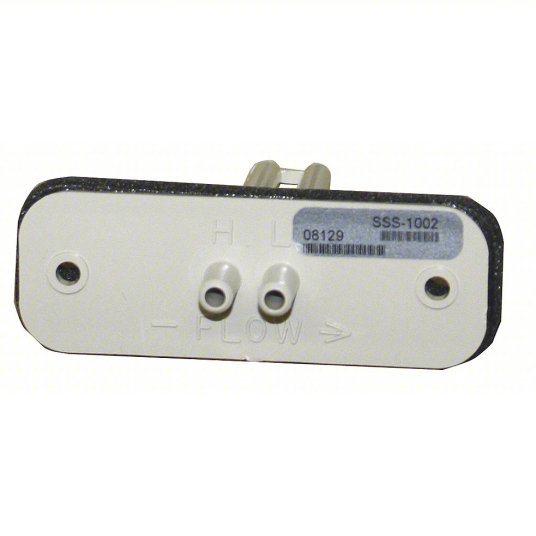

Differential Pressure Sensor: 3 3/16 in Insertion Lg
tem 4DEA3
Mfr. Model SSS-1002
Pneumatic air differential pressure sensors are installed into HVAC systems at the VAV or fan terminal unit. They tap into the airstream and allow users to connect these taps to the HVAC control system to measure these pressures. They can also be connected to sense pressure differentials from other locations in the duct system.
Brand KMC CONTROLS
Manufacturer Part Number SSS-1002
For Media Air
For Use With Building Automation SystemsNot Compatible with Building Automation Systems
Minimum Operating Temperature 40 °F
Maximum Operating Temperature 120 °F
Mounting Location Return Duct
Mounting Hole Center to Center Distance 2-3/4 in
Mounting Hole Diameter 3/16 in
Insertion Length 3-3/16 in
Overall Height 1-1/4 in
Overall Width 3-1/2 in
Series SSS
Includes 1/4 in Gasket
StandardsRoHS
Flange Length3-1/2 in
Flange Width1-1/4 in
Process Connection Size1/4 in
Number of Mounting Holes2
Use With Building Automation SystemsNo
Number of Pickup Points1
UNSPSC41111927
Country of OriginUSA
Item 4DEA3
Mfr. Model SSS-1002
