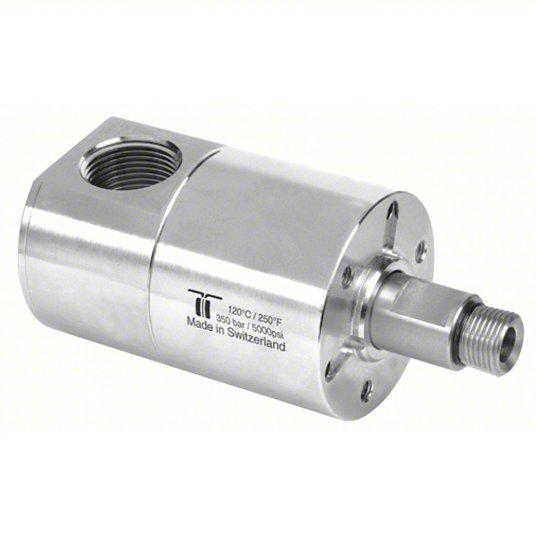

Rotary Union: Straight, 304 Stainless Steel, 1 Passages, 3/8 in G M Rotating Shaft, Carbide Seal
- Item
- 40E982
- Mfr. Model
- 59.902
-
Stainless steel rotating joints and unions resist corrosion and withstand high temperatures. They are often used in harsh environments exposed to damp conditions such as industrial cleaning applications.
- Brand
- MOSMATIC
- Fitting Material
- Stainless Steel
- Fitting Material Grade
- 304
- Fitting Type
- Straight
- Seal Material
- Carbide
- Rotating Shaft Connection Type
- G M
- Rotating Shaft Thread Size
- 3/8 in
- Shaft Thread Length
- 15/32 in
- Stationary Port Connection Type
- NPTF
- Stationary Port Thread Size
- 3/4 in
- Flow Direction
- Single-Flow
- Maximum Speed
- 2000 RPM
- Thread Rotation
- Right Hand
- Maximum Operating Temperature
- 250 °F
- Bearing Type
- Radial Ball Bearings; Thrust Ball Bearings
- Body Diameter
- 2.36 in
- Overall Length
- 5.08 in
- Standards
- ISO 9001
- Number of Passages
- 1
- Internal Fitting Material Grade
- 304
- Internal Fitting Material
- Stainless Steel
- Internal Material
- 304 Stainless Steel
- UNSPSC
- 40142320
- Country of Origin
- Switzerland
