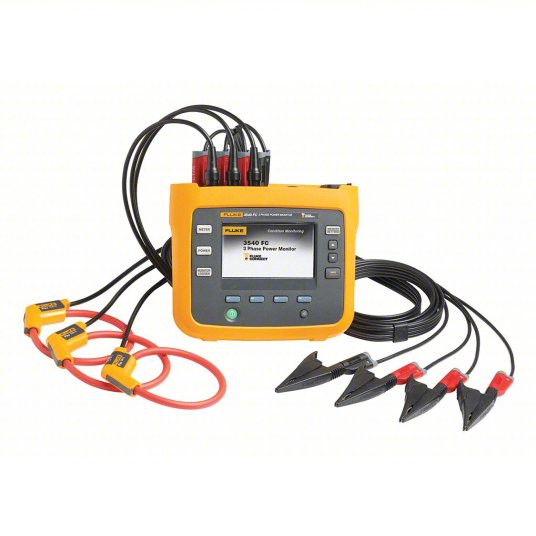

FLUKE Power/Condition Monitor: CAT II 1000V/CAT III 600V/CAT IV 300V, For Single/Split/Three Phase
Power quality analyzers use insulated test leads with compatible probes and clamps to detect power, quality, and energy waste in facilities. Also called power quality testers, these units send AC currents through electrical systems to trace and identify issues like voltage spikes that damage equipment over time. They also pinpoint harmonic irregularities, swells, unbalance, and dips in energy which may lead to automated systems losing power, reduction in overall efficiency, or even production downtime. Power quality analyzers help electricians, operators, and facility maintenance personnel proactively troubleshoot to streamline production, eliminate downtime, and help reduce costs.
Brand FLUKE
CAT Safety Rating CAT II 1000V; CAT III 600V; CAT IV 300V
Maximum AC Current Measured1,000 A
Maximum AC Voltage Measured1,000 V
Maximum Wattage1.56 GW
Voltage Channels 4
Current Channels 3
Power Source Battery; Wire Leads
Calibration CertificateNot Included
Alert Type Light
Battery Chemistry Lithium Ion
Battery Size3.7V
Calibration Frequency42.5 to 69 Hz
Communication ProtocolUSB-A; Wi-Fi
Crest FactorLess Than 3
Current Accuracy±1.00% +0.03%
Data LoggerYes
Digital Memory Capacity2 GB
Display Resolution480 x 272 px
Display Screen TypeLCD Touchscreen
Display Size4.3 in
Display TypeDigital
Frequency Rating42.5 to 69 Hz
Harmonic Capture1.5 to 49.5th
IP RatingIP50
Includes(2) Set of Test Leads with Stackable Plugs, 1.5 m (6.6 ft); (2) Set of Test Leads with Stackable Plugs, 10 cm (3.9 in); (3) i173x-flex1500 iFlex Current Probe, 30.5 cm (12 in); (4) Set of Dolphin Clips, Black; DC Power Cable; Fluke 3540 FC Three-Phase Power Monitor; Input Connector Decal; Magnetic Hanging Kit; Mains Power Cable; Set of Color-Coded Wire Clips; Voltage Test Lead (3-Phase + N); Wi-Fi to USB Adapter
Includes BatteriesNo
Includes SoftwareYes
Increment of Variation0.01 Hz (Frequency); 0.01V (Voltage); 1 mA (Current)
Input Impedance10 megaohm
Manufacturer Warranty Length2 yr
Maximum Operating Temperature113 °F
Maximum Volt-Amps50 VA
Minimum Operating Temperature32 °F
Peak CaptureYes
Power Factor-1 to 1
Sampling Rate10.24 kHz
StandardsIEC 60529; IEC 61010-1; IEC 61326-1; MIL-T-28800E, Type 3, Class III, Style B; USA (FCC): 47 CFR 15 subpart B
Test Lead Length6.6 ft
Testing Functions Active Power; Current; Frequency; Non-Active Power; Power Factor; Single, Split, or Three Phase Loads; Total Harmonic Distortion; Voltage
Tool Height 2.2 in
Tool Length 7.8 in
Tool Width 6.6 in
Voltage Accuracy ±0.20% +0.01%
Manufacturer Part Number FLUKE 3540 FC KIT
UNSPSC41113708
Country of Origin Romania
Item 488Y61
Mfr. Model FLUKE 3540 FC KIT
