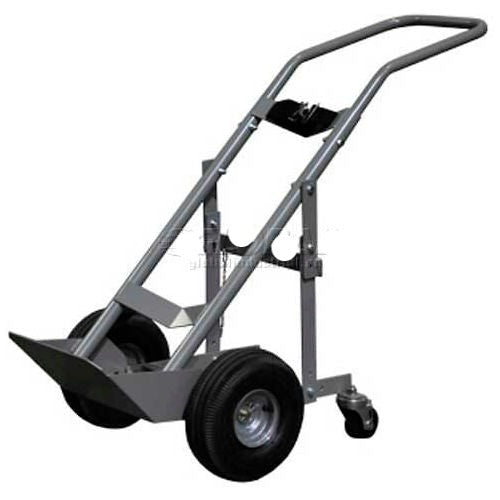

1 Cylinder Truck G-904 - 4 Wheel - 10-1/2" Pneumatic Wheels - 1000 Lb. Cap
- Four wheel cylinder industrial quality hand truck for gas cylinders up to 12.0 inch diameter
- Designed and built in the USA using American steel, labor, assembly, packaging and finishes
- Configured for one cylinder with 10.5 inch fully pneumatic wheels for safe, convenient transport of medical, industrial and commercial use gases
- Swing-down steel carriages allow use of rear swivel casters for additional safety and control
- Justrite®ty hand trucks are exterior grade powder coated for durability
- Constructed from heavy 11 gauge HR Steel with 3/16 inch thick steel supports and round steel tube
- Heavy poly straps with steel cinch buckles hold cylinders secure
- Rated 1,000 lb. total capacity
- Units are fully welded
- Dimensions: 19L. x 21W. x 47H.
- Weight: 45 lbs
- Ships partially assembled via UPS
- Shipping Dimensions: 32 x 21 x 18
- Shipping Weight (with packaging): 46 lbs
Weights & Dimensions
| Wheel Diameter | 10-1/2 in |
| Weight | 45.0 lbs |
| Weight Capacity | 1000 lbs |
| Height | 47 in |
| Noseplate Width | 12-1/8 in |
| Width | 21 in |
| Noseplate Depth | 8 in |
| Length | 19 in |
Product Details
| Assembly Required | No |
| Type | Tilt Back Single Cylinder |
| Cylinder Type Family | 12" Max |
| Color | Gray |
| For Cylinder Types | Universal (12" Diameter Max.) |
| Wheel Type | Pneumatic |
| Capacity | 1 Cylinder |
| Material | 11 Gauge Hot Rolled Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | 35006 |
| Wheel Type Family | Pneumatic |
| Brand | Justrite |
Model #: WBB1170794
MPN #: 35006
