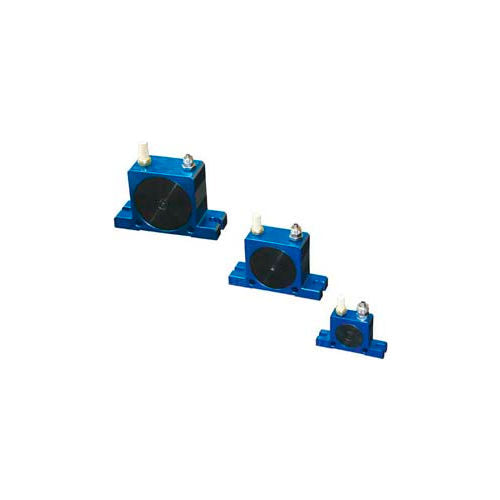

OLI Vibrators, Pneumatic Vibrator S 25 Ball, Anodized Aluminum Body
Model #: WBB783732
MPN #: S 25
OLI Pneumatic Ball Vibrators are suitable for use in harsh, outdoor conditions on small to medium-sized hoppers, bins, chutes and pipes. They are maintenance-free when used with filtered/lubricated air. Superior design reduces air consumption by up to 50% compared to other ball vibrators. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
Dimension F | 0.35 in |
Dimension C | 4.09 in |
Max Force | 345 LBS @ 58 PSI lbs |
Dimension A | 3.15 in |
Dimension B | 5.04 in |
Height | 2.6 in |
Length | 5.7 in |
Width | 3.7 in |
Dimension D | 0.63 in |
Dimension E | 1.50 in |
Outlet | 1/4" NPT |
Material | Anodized Aluminum Body |
Description | Pneumatic Vibrator |
Inlet | 1/4" Gas |
Manufacturers Part Number | S 25 |
Brand | OLI Vibrator |
