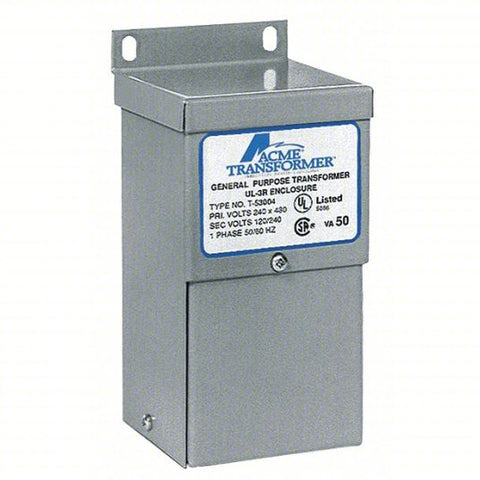

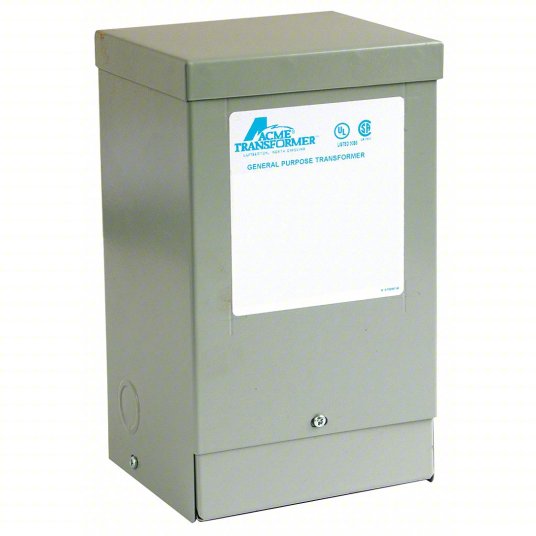

Single Phase Transformer: 240V AC/480V AC, 120V AC/240V AC, Wall, Copper, Single, Gray
T253007S
Item 4WUA2
Mfr. Model T253007S
Brand ACME ELECTRIC
Item - Transformer Single Phase Transformer
Phase - Electrical Single
Input Voltage - Transformer 240V AC; 480V AC
Output Voltage - Transformer120V AC; 240V AC
VA Rating - Transformer 500 VA
Mounting - Transformer Wall
Outdoor Rated - Transformer Yes
Voltage Function - Transformer Step Down
Winding Material - Transformer Copper
Hz - Electrical 60 Hz
Temp. Rise 115 °C
Enclosure Rating NEMA 3R
IP Rating 14
Width 4.37 in
Height 9.06 in
Depth 4.2 in
Color Gray
Enclosure Finish Powder Coated
Enclosure Material Steel
Standards UL Listed ,CSA Certified
Knockout Size - Transformer1/2 in; 3/4 in
Manufacturers Warranty Length10 yr
UNSPSC 39121001
Country of OriginMexico
Single-Phase Transformers are suitable for high-current and industrial applications such as routine lighting and power.
Construction Encapsulated
Electrostatic Shield Shielded
Max Temperature Rise 115 Degrees Celsius
Mounting Type Wall
Primary Voltage 240 X 480
Product Category Dry Type Distribution Transformer
Secondary Voltage 120/240 V
UL Insulation Class 155°C
UPC 047503085080
Winding Material CU
kVA 0.3
Dimensions
Height 8.68 in
Length 3.88 in
Weight 10 lb
Width 4.08 in
Electrical Ratings
Frequency Rating 50/60 Hz
Primary Voltage 240 X 480 V
Certifications and Compliance
CSA Standard C22.2 No. 47
Nema Rating NEMA 3R
UL Standard UL 506
Electrostatic Shield Shielded
Max Temperature Rise 115 Degrees Celsius
Mounting Type Wall
Primary Voltage 240 X 480
Product Category Dry Type Distribution Transformer
Secondary Voltage 120/240 V
UL Insulation Class 155°C
UPC 047503085080
Winding Material CU
kVA 0.3
Dimensions
Height 8.68 in
Length 3.88 in
Weight 10 lb
Width 4.08 in
Electrical Ratings
Frequency Rating 50/60 Hz
Primary Voltage 240 X 480 V
Certifications and Compliance
CSA Standard C22.2 No. 47
Nema Rating NEMA 3R
UL Standard UL 506
