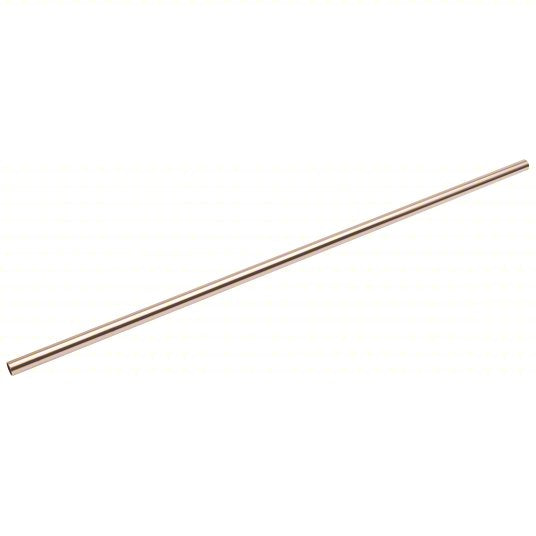

Tubing: Copper, 3 in, Type M, 10 ft, Straight
Type M copper tubing uses less copper, has the thinnest wall thickness, and is lighter and more economical than other copper tubing for easy installation. Low-pressure applications include HVAC, potable water service and distribution, fire protection, fuel/fuel oil, and vacuum. ASTM specifications are permanently marked or incised in red to distinguish between other copper tube types.
Brand STREAMLINE
Copper Tube Type M
Form Straight
Copper Tube Size 3 in
Outside Diameter 3-1/8 in
Wall Thickness 0.072 in
Overall Length 10 ft
Maximum Operating Temperature 400 °F
Minimum Operating Temperature 100 °F
Maximum Operating Pressure 203 psi @ 200°F
Inside Diameter 3 in
Temper Hard
Fabrication Seamless
Material Grade C12200
Material Copper
Cleaned and Capped No
Application Potable Water
Standards ASTM B88; NSF 372; NSF/ANSI/CAN 61; UNS C12200
Features Color Coded
For Fluid Type Water
Market Industrial
Industry Application DWV; Mechanical; Plumbing
Weight Per Foot2.68 lb /ft
UNSPSC31231302
Country of Origin USA
Item 4WTN3
Mfr. Model MH30010
