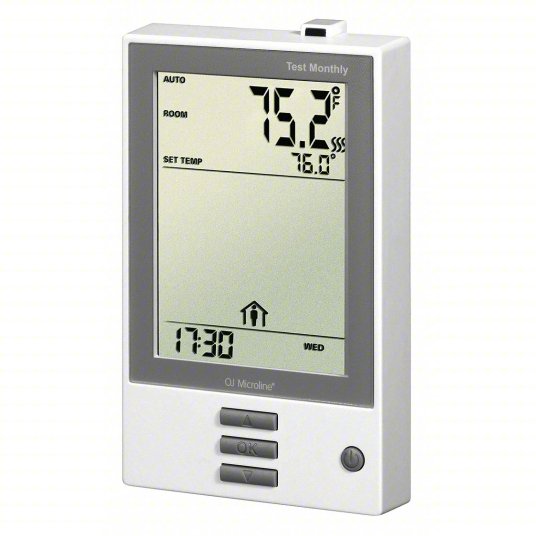

Electric Floor Heater Thermostat
Item 402V74
These thermostats control the temperature of electric floor heaters. They regulate heat and have controls for customizable heat settings.
402V74
Mfr. Model UDG-4999
Brand THERMOSOFT
Overall Width 3 in
Voltage 120/240V AC
Programming Capability 7-Day
Includes Floor Sensor
Standards UL Listed
Product Type Electric Floor Heater Thermostat
Compatible System Type Radiant Floor Heating Systems
Contact Rating 120/240V AC
Housing Color White
Maximum Operating Temperature 104 °F
Mounting Type Flush Mount; Wall Mount
Number of Poles 1
Overall Depth4-3/4 in
Overall Height4-3/4 in
Sensor Length10 ft
Thermostat Control Amperage15 A
Thermostat Control Voltage120/240V AC
UNSPSC41112209
Country of OriginDenmark
