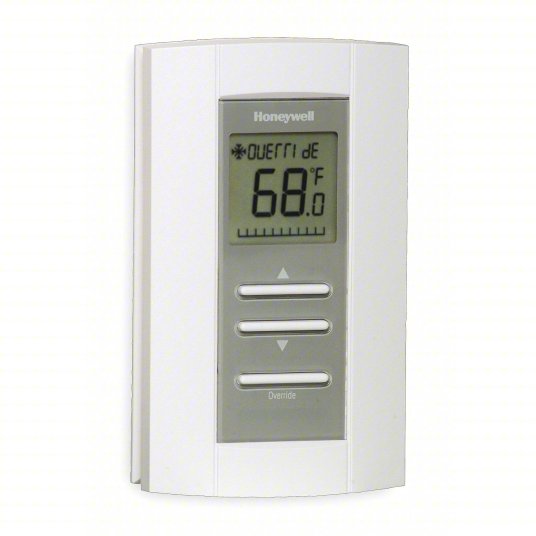

VAV Thermostat: 24V AC, Floating, Digital, 1 Floating/1 Modulating or Triac/1 Triac

VAV Thermostat: 24V AC, Floating, Digital, 1 Floating/1 Modulating or Triac/1 Triac
Brand: HONEYWELL
Type: Floating Multiple Output
Description: Floating Thermostat with 2 Additional Outputs, and Max. and M in Setpoints for Heating and Cooling, Night Setback (NSB) Terminal for Energy Savings
Application: Heating and Cooling, Low-Voltage Pressure-Dependent Variable Air Volume (VAV) Applications
Control Range (F): 50 to 95
Input Voltage: 24V AC
Number of Relay Outputs: 2
Output Signal: Floating
Output Signal Burden: 0.5A max @ 24V AC
Outputs: 1 Floating; 1 Modulating or Triac; 1 Triac
Automatic Changeover Deadband (F): 9 °F
Display: Digital
Enclosure Type: Plastic
Mounting: directly to drywall; double-gang NEMA standard electrical box with mounting plate; single-gang NEMA standard 2-in x 4-in electrical box
Height (In.): 4-5/8 in
Width (In.): 2-11/16 in
Depth (In.): 1 in
Color: White
UNSPSC: 41112209
Country of Origin: China
Item: 279A57
Mfr. Model: TB6980B1006
