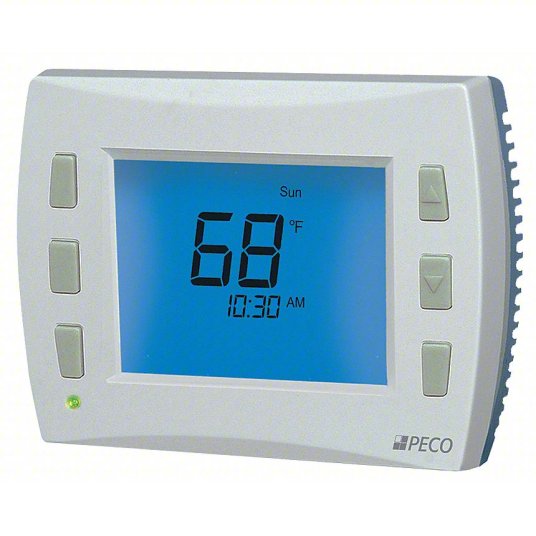

Low Voltage Thermostat: Heat and Cool, Auto and Manual, 5-1-1/5-2/7 Day, Horizontal, 6 Zones
Standard thermostats are most commonly used to control the temperature of conventional forced air systems or heat pumps in residential and light commercial settings, such as offices, restaurants, or retail stores. They're programmable and allow users to select temperature settings for different times of the day or different days of the week.
- Brand
- PECO
- Application
- Heat and Cool
- Changeover Type
- Automatic and Manual
- Compatible System Type
- Electric Forced Air Furnaces; Gas Forced Air Furnaces; Heat Pump with Aux; Heat Pump without Aux
- Control Type
- Push Button
- Dehumidification Control
- No
- Differential Type
- Fixed
- Digit Size
- Easy Read
- Display Type
- Digital
- Dual Transformer Compatible
- Yes
- Fan Settings
- Auto-On
- Humidification Control
- No
- Includes
- Mounting Hardware
- Includes Positive Off
- Yes
- Key Pad Lockout
- Yes
- Mounting Direction
- Horizontal
- Minimum Control Temperature
- 50 °F
- Maximum Control Temperature
- 90 °F
- Number of Cooling Stages - Conventional System
- 2
- Number of Heating Stages - Conventional System
- 3
- Number of Cooling Stages - Heat Pump System
- 2
- Number of Heating Stages - Heat Pump System
- 4
- Number of Zones
- 6
- Overall Depth
- 1-5/16 in
- Overall Height
- 4-5/16 in
- Overall Width
- 5-3/4 in
- Programming Capability
- 5-1-1; 5-2; 7 Day
- Shape
- Rectangle
- System Settings
- Auto-Cool-Heat-Off
- Temperature Differential
- 1°F
- Temperature Readout
- Yes
- Temperature Scale
- Fahrenheit/Celsius
- Terminal Designations
- A; C; E; G; RC; RH; S1; S2; S3; SC; W1 (B/O); W2 (AUX); Y1; Y2
- Thermostat Type
- Low Voltage
- Voltage
- 20/30V AC
- Temperature settings per day
- 0; 1; 2; 4
- Backlit Screen
- Yes
- Backlit Screen Color
- Blue
- Battery Backup
- Yes
- Battery Type
- (2) AA Batteries
- Contact Rating
- 24V AC
- Electrical Connection Type
- Hardwired
- Filter Change Reminder
- Yes
- Frequency
- 50 Hz; 60 Hz
- Housing Color
- White
- Includes Batteries
- Yes
- Low Battery Indicator
- Yes
- Minimum Operating Humidity
- 25 %
- Maximum Operating Humidity
- 99 %
- Minimum Operating Temperature
- 0 °F
- Maximum Operating Temperature
- 120 °F
- Millivolt Compatible
- No
- Occupancy Sensor
- Includes Occupancy Sensor
- Occupancy Sensor Compatibility
- 2NCC2; 2NCC8
- Screen Height
- 3-1/4 in
- Screen Width
- 2-1/2 in
- Sensor Location
- Remote
- Smart Connectivity
- No Connectivity
- Standards
- ASHRAE 90.1-9; California Title 24
- Temperature Limiting
- Yes
- Temporary Program Override
- Yes
- Temporary Temperature Hold
- Yes
- Key Features
- A Secure Digital (SD) Card Capability
- Mounting Location
- Wall
- Mounting Type
- Surface Mount
- UNSPSC
- 41112209
- Country of Origin
- China
-
Item 6FFW8
Mfr. Model T8532-001
