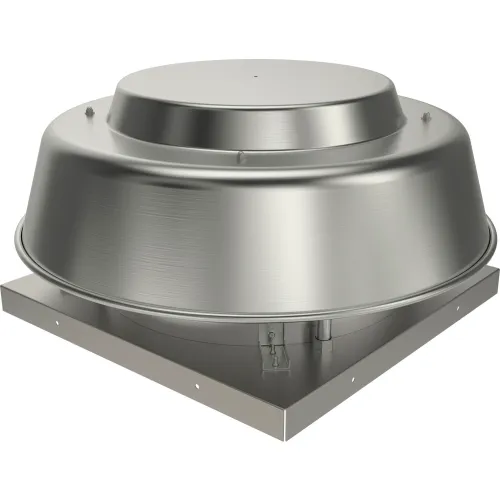

Fantech 16" Direct Drive Axial Roof Vent 5ADE16EA, 3/4 HP, 115V, 1 PH, 2767 CFM, ODP
Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures. All models are manufactured from durable spun aluminum; venturi, inlet and supports are galvanized. Blades are made from stamped aluminum. Ventilators are wall mountable.
Features:
- All ventilators are UL 705 Standard listed
- Inlet temperatures up to 140°F
- Junction box mounted in motor compartment
- Built-in bird screen to protect discharge and ensure safe operation
- Externally cooled motor compartment
- Speed controllable
Weights & Dimensions
| Weight | 147 lbs |
| Base Length | 26 in |
| Fan Diameter | 16 in |
| Height | 16-1/2 in |
| Width | 33-1/4 in |
| Length | 16-1/2 in |
Product Details
| Number of Speeds | Variable |
| For Use With | 5ACC03SC |
| Operating Temperature | Up To 140°F |
| Motor Type | ODP |
| Mounting Location | Roof |
| Peak Fan Power Input | 560 BHP |
| Material | Galvanized Steel |
| Phase | 1 |
| Manufacturers Part Number | 5ADE16EA |
| Brand | Fantech |
| Horsepower | 3/4 HP |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Sones | 16.5 |
| Speed Controllable | Y |
| RPM High | 1,730 rpm |
| Voltage | 115 V |
| CFM High | 3070 CFM |
| Description | Downblast Ventilator |
| Watts | 560 W |
Model #: WBB2146230
MPN #: 5ADE16EA
