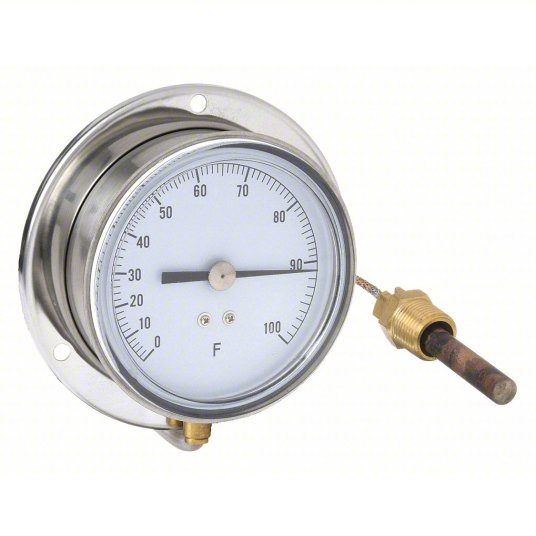

Analog Panel Mount Thermometer: 0° to 100°F, 3.5 in Dial Dia, 1/2 in MNPT with 5 ft Cable
Industrial panel-mount thermometers include an external cabled probe that measures temperatures. They typically mount to panels with the dial face positioned for easy viewing and monitoring.
Scale Type Dial
Thermometer Type Remote Reading
Scale Fahrenheit
Temperature Range0° to 100°F
Temperature Graduations1°F
Dial Diameter 3.5 in
Flange Outside Diameter 4.7 in
Cable Length 5 ft
Probe Length 2 in
Probe Diameter 0.4 in
Sensor Technology Vapor-Actuated
Process Connection1/2 in MNPT with 5 ft Cable
Mounting StyleBack Flange
Includes NIST-Traceable Certificate No
Lens Material Polycarbonate
Construction304 Stainless Steel Housing with Polycarbonate Lens
NSF RatedNo
Probe Style0.4 in Dia x 2 in L Copper Probe
Accuracy±1°F Scale Division
Minimum Temperature °F0 °F
Maximum Temperature °F100 °F
Thread Size1/2 in
Thread TypeNPT
Thread GenderMale
Housing Material304 Stainless Steel
Mounting Hole Diameter0.2 in
Probe MaterialCopper
UNSPSC41112210
Country of OriginChina
Item 12U634
Mfr. Model 12U634
