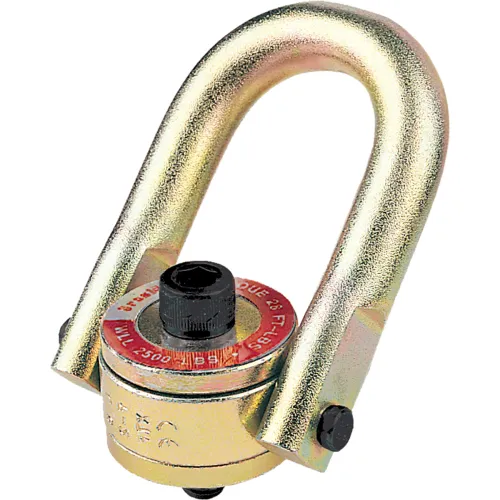

Crosby HR-125 Hoist Ring Swivel 5/8" - 11 X 2", Thread Proj. - 0.7", 4000 LBS WLL
Model #: WBB3055175
MPN #: 1016920
- All components are alloy steel, Quenched and Tempered
- Rated at 100% at 90° angle
- Individually proof-tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
- Marked with a Product Identification Code (PIC) for traceability, top washer is marked with Working Load Limit and recommended torque value
- 360° swivel and 180° pivot action
- Satisfies ASME B30.26 requirements
Specifications(1)
Weights & Dimensions
| Length | 4.85 in |
| Width | 3.35 in |
| Thread Length | 0.7 in |
| Bolt Size | 5/8- 11 X 2.00 in |
| Working Load Weight Limit | 4000 lbs |
Product Details
| Color | Gold |
| Manufacturers Part Number | 1016920 |
| Brand | Crosby |
