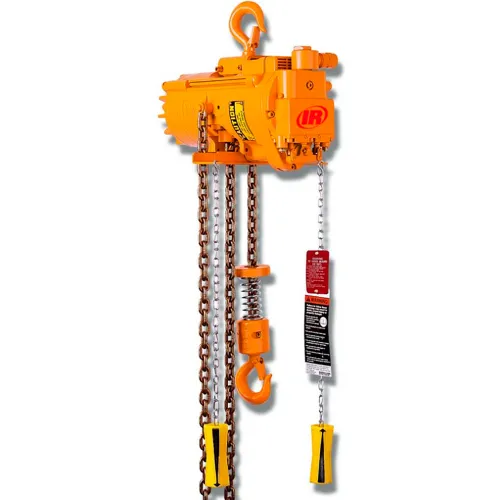

Ingersoll Rand MLK Chain Hoist 550 Lb. Capacity 10 Ft Lift

  • Sale
  • $7,977.00


Ingersoll Rand MLK Chain Hoist 550 Lb. Capacity 10 Ft Lift

Model #: WBB2277149

MPN #: ML250K-2C10-C6

Ingersoll Rand MLK Chain Hoist 550 Lb. Capacity 10 Ft Lift

Serving industry for over 25 years, the rugged and reliable MLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations. Spark resistant and slow speed precision spotting models are also available. MLK series come with a wide range of options and accessories. MLK series hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.
Features:
  • 100% duty cycle. MLK/HLK are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m.
  • These hoist are ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications.
  • Pull chain or pilot pendent controls provide precise spotting capabilities. For even more precise control MLKS slow speed models are available.
  • Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
  • All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
  • Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
  • Spark resistant models and a wide range of options and accessories are available.

Weights & Dimensions

Length 18 in
Width 18 in
Height 13-1/2 in
Weight Capacity 550 lbs
Weight 84 lbs
Hook Opening 1.125 in
Drop 6'
Head Room 18 in
Lift 10 ft
Lift Speed 10 ft/min

Product Details

Assembly Required No
Type Chain Hoist w/ Pendent Control
Color Yellow
Series MLK Chain Hoist
Material Steel
Operation Air
Chain Falls 1
Manufacturers Part Number ML250K-2C10-C6
Brand Ingersoll Rand

Weights & Dimensions

Length 18 in
Width 18 in
Height 13-1/2 in
Weight Capacity 550 lbs
Weight 84 lbs
Hook Opening 1.125 in
Drop 6'
Head Room 18 in
Lift 10 ft
Lift Speed 10 ft/min
