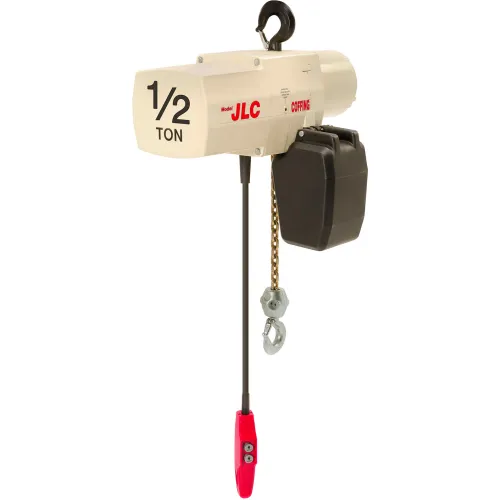

Coffing® JLC 1/2 Ton, Electric Chain Hoist W/ Chain Container, 10' Lift, 16 FPM, 115/230V
Model #: WBB2222075
MPN #: 08221W
Coffing JLC Electric Chain Hoist With Chain Container, 1/2 Ton Cap., 10 Ft. Lift, 16 Fpm 115/230V
The JLC is engineered and bulit for the heavy-duty demands of industrial applications. Compact in size but big on features, the JLC boasts a multiple disc motor brake, overload clutch, and chain end stop for safety.
Features:
The JLC is engineered and bulit for the heavy-duty demands of industrial applications. Compact in size but big on features, the JLC boasts a multiple disc motor brake, overload clutch, and chain end stop for safety.
Features:
- 10, 15 & 20 foot standard lifts. Standard push button drop is 4 feet less than lift. CSA approved.
- Panel plates provides easy access to controls and motor leads for changing voltage on dual-voltage motors or servicing the hoist.
- 5-pocket load sheave which provides smoother lifting and reduces chain wear.
- Mechanical overload protection device protects hoist, operator and supporting structures from damaging overloads, chain jamming and reverse phasing.
- Oil bath transmission and precision machined alloy steel gears for longer, quieter operation.
- Chain container is standard on lifts up to 20 ft. single chain and 10 ft. double chain.
- Lifetime warranty.
- Made in the UNITED STATES.
Weights & Dimensions
| Length | 24-1/16 in |
| Width | 8-11/16 in |
| Height | 18-1/8 in |
| Weight Capacity | 1000 lbs |
| Weight | 79 lbs |
| Head Room | 18-1/8 in |
| Lift | 10 ft |
| Lift Speed | 16 ft/min |
Product Details
| Assembly Required | No |
| Type | Chain Hoist |
| Horsepower | 1/2 HP |
| Color | White |
| Number of Speeds | 1 |
| Series | JLC |
| Voltage | 115/230 V |
| Material | Aluminum |
| Manufacturers Part Number | 08221W |
| Brand | Coffing |
Model #: WBB2222075
MPN #: 08221W
Warranty
| Warranty | Lifetime |
