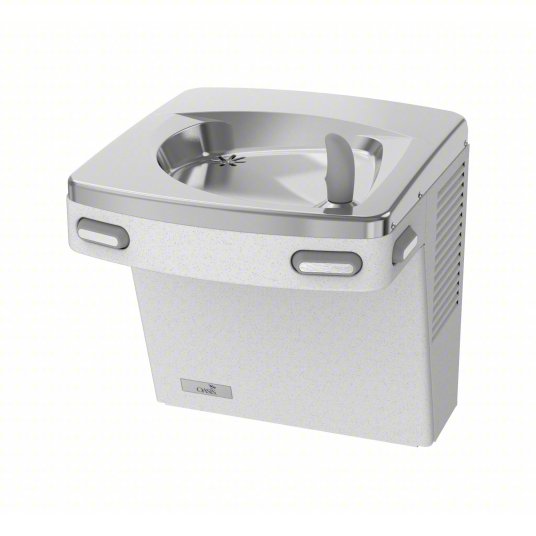

OASIS Drinking Fountain: On-Wall, 18 7/8 in Ht, Front Push Button/Side Push Button, 8 gph @ 50°F
Item 787G95
Mfr. Model PG8AC GST
Item 787G95
Mfr. Model PG8AC GST
Brand
OASIS
OASIS
Mounting Location
Wall Mount
Wall Mount
Station Type
Single Fountain
Single Fountain
Fountain Actuation
Front Push Button/Side Push Button
Front Push Button/Side Push Button
Environment
Indoor
Indoor
Bi-Level Field Adjustable
Not Bi-Level Field Adjustable
Not Bi-Level Field Adjustable
Cooling Capacity
8 gph @ 50°F
8 gph @ 50°F
Refrigeration
Refrigerated
Refrigerated
Housing Color
Gray
Gray
Housing MaterialStainless Steel
Housing Finish
Powder Coated
Powder Coated
Basin Material
Stainless Steel
Stainless Steel
Basin Finish
Galvanized
Galvanized
Bubbler Material
Brass
Brass
Bubbler Finish
Chrome-Plated
Chrome-Plated
Number of Bubblers
1
1
Overall Height
18-7/8 in
18-7/8 in
Overall Width
17-5/8 in
17-5/8 in
Overall Depth
18-5/8 in
18-5/8 in
Basin Width
12-3/4 in
12-3/4 in
Basin Depth
18-5/8 in
18-5/8 in
Drain Outside Diameter
1-1/4 in
1-1/4 in
Temperature Adjustment
Adjustable
Adjustable
Max. Cold Water Temperature
50 °F
50 °F
Max. Flow Rate
8 gph
8 gph
Chiller Compatible
Chiller Compatible
Chiller Compatible
Refrigerant Type
R134A
R134A
Operating Voltage
115V AC
115V AC
Full Load Current
4.6 A
4.6 A
Power Source
Electric Corded
Electric Corded
Power Consumption
460 W
460 W
Compressor Horsepower
1/4 hp
1/4 hp
Filter AccessBottom Panel Access
Includes Water Filter
Water Filter Not Included
Water Filter Not Included
Includes Water Chiller
Water Chiller Included
Water Chiller Included
Includes Back PanelBack Panel Not Included
Includes Pet Bowl
Pet Bowl Not Included
Pet Bowl Not Included
Includes
Mounting Hardware
Mounting Hardware
Compatible Filter Manufacturer Part Number041253-001; 846P56
Features
(4) Push Pads; High Efficiency Cooling System
(4) Push Pads; High Efficiency Cooling System
Antimicrobial
Antimicrobial
Antimicrobial
Vandal ResistantNot Vandal Resistant
ADA CompliantADA Compliant
StandardsADA; NSF/ANSI 372; NSF/ANSI Standard 61-G and 372; UL 399 and CAN/CSA C22.2 No.120
Product Weight59 lb
Manufacturer Warranty Length5 yr Refrigeration System
Manufacturer Part Number
PG8AC GST
PG8AC GST
Country of OriginMexico
