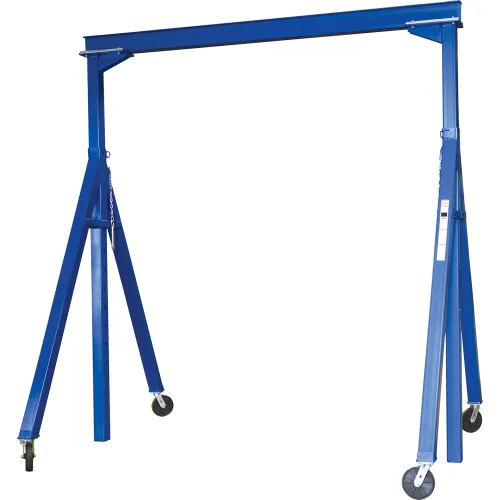

Adjustable Height Steel Gantry Crane, 10'W x 7'6"-12'H, 4000 Lb. Capacity

  • Sale
  • $5,479.00


Adjustable Height Steel Gantry Crane, 10'W x 7'6"-12'H, 4000 Lb. Capacity

Model #: WB241328

MPN #: AHS-4-10-12

Industrial Gantry Crane is designed to be portable and offer more flexibility than permanent cranes. I-beam mounting plate design offers quick set-up. Heavy duty steel construction with chip-resistant enamel finish is ideal for warehouse or machine shop, indoor or outdoor. Four 8" phenolic wheel 4-position swivel lock casters ease movement between work areas. Telescopes in 6" height increments using forklift or with optional lever ratchets for one-person adjustment. Note: Use Crane to Lift Loads only.**Height is measured from underside of I-Beam to Floor NOTE: All gantries should be inspected frequently to insure safe operation. Final testing and inspection is left to end user after final assembly has been completed. For further details see ASME B30.17.

Weights & Dimensions

Width 10 ft
Weight Capacity 4000 lbs
Weight 848 lbs
Base Diameter Or Dimension 76-1/8 in
Max Height 12' in
Min Height 7' 6 in
Flange Width 4 in
I-Beam Height 8 in

User manuals/guides(1)


Product Details

Assembly Required Yes
Type Adjustable Height
Color Blue
Material Steel
Manufacturers Part Number AHS-4-10-12
Brand Vestil
