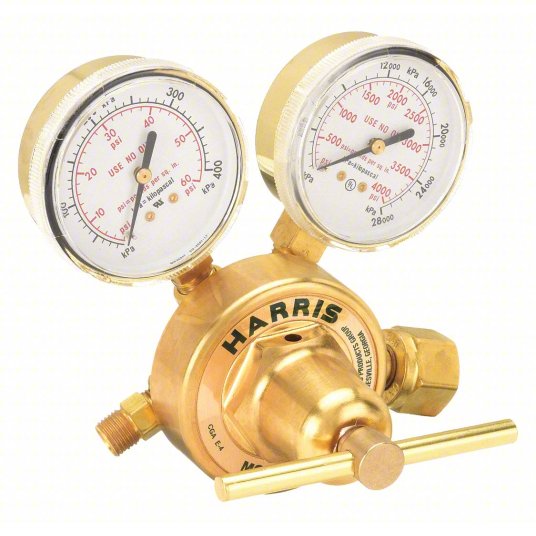

HARRIS Gas Regulator: Single Stage, CGA 540 Inlet, 9/16"-18 M RH Outlet, 50 psig, Neoprene Diaphragm
These regulators are for use with oxygen and inert gases like argon, helium, and nitrogen. They are not compatible with fuel or corrosive gas.
CGA Number
CGA 540
CGA 540
Inlet Connection
CGA 540
CGA 540
Inlet Connection Type
NGO
NGO
Inlet Connection Gender
Male
Male
Inlet Connection Size
0.825"-14
0.825"-14
Inlet Thread Direction
Right Hand
Right Hand
Inlet Pressure (Maximum)
3,000 psig
3,000 psig
Outlet Connection
9/16"-18 M RH
9/16"-18 M RH
Outlet Connection Type
UNF
UNF
Outlet Connection Gender
Male
Male
Outlet Connection Size
9/16"-18
9/16"-18
Outlet Thread Direction
Right Hand
Right Hand
Outlet Pressure (Maximum)
50 psig
50 psig
Outlet Pressure (Minimum)
0 psig
0 psig
Body Material
Brass
Brass
Body Finish
Chrome Plated
Chrome Plated
Diaphragm Material
Neoprene
Neoprene
Seal Material
PTFE
PTFE
Control Type
T-Handle
T-Handle
Flow Coefficient
0.17
0.17
Maximum Gauge Outlet Pressure
4,000 psig
4,000 psig
Body Diameter
2.75 in
2.75 in
Gauge Diameter
2-1/2 in
2-1/2 in
Overall Depth
4.5 in
4.5 in
Overall Height
6.5 in
6.5 in
Overall Width
6.75 in
6.75 in
Application
Industrial Purpose
Industrial Purpose
FeaturesDesigned to Make it a Rugged, Long-Lasting Performer, Including An Exclusive Tamper-Proof, Self-Reseating Internal Hp Safety Valve; Pipelines Classic Kits
Standards
CGA E-4; UL Listed
CGA E-4; UL Listed
UNSPSC
40142201
40142201
Country of Origin
USA
USA
Item 5KZ50
Mfr. Model 25GX-50-540
