Harrington TNER010L-10 TNER Theatrical Chain Hoist 1 Ton Capacity 10' Lift, 460V

Model #: WBB1785957

MPN #: TNER010L-10

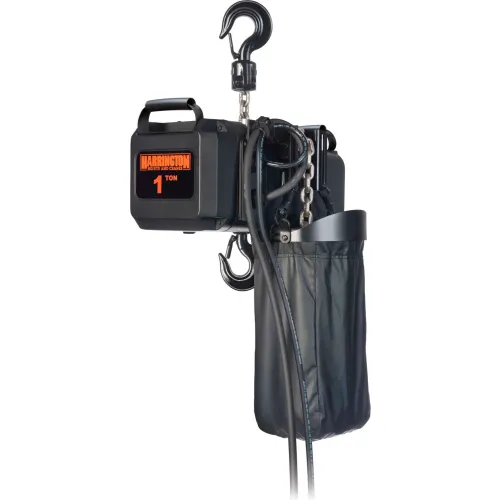

Harrington TNER010L-10 TNER Theatrical Chain Hoist 1 Ton Capacity 10' Lift

Our TNER Series theatrical chain hoists were designed using the latest technology for handling stage and theatrical equipment. These high quality, low-headroom, full-featured hoists provide reliable performance for use in theaters, concert halls, arenas and studios.

Features

• Standards - Hoist exceeds stringent world standards; complies with German regulation BGV-D8. Standard configuration meets CE Declaration.
• Pull-Rotor Motor Brake - World's most reliable theatrical hoist brake. Simple design. No brake coil to fail or brake disc to replace. 5 year hoist brake warranty.
• Unique Chain Guide - Provides quiet and smooth guiding of chain into hoist and chain container. Durable, heavy cast iron construction.
• Sleek Rounded Body - Rugged aluminum housing; no sharp edges and flexible soft-grip handles.
• Low Profile Upper/Lower Limit Switches - No adjustment required. Protects hoist and provides maximum travel.
• Size and Speed - Designed to fit standard road cases. 1/2 and 1 Ton-16 fpm; 2 Ton-8 fpm.
• Grease-Packed Gearbox - For demanding theatrical applications. Maintenance free. No oil changes required.
• Nickel-Plated Load Chain - Meets DIN and EN 818-7 standards. Optional black chain available.
• Friction Clutch - Carbon friction material provides consistent performance over a wide temperature range.
• Chain Container - Reversible black canvas chain container needed to meet BGV-D8 regulations. Also designed with two secure attachment points.
• Optional Pendant Control (Pickle) - Red button emergency stop. Nema 4X, UL/cUL (CSA) listed.
