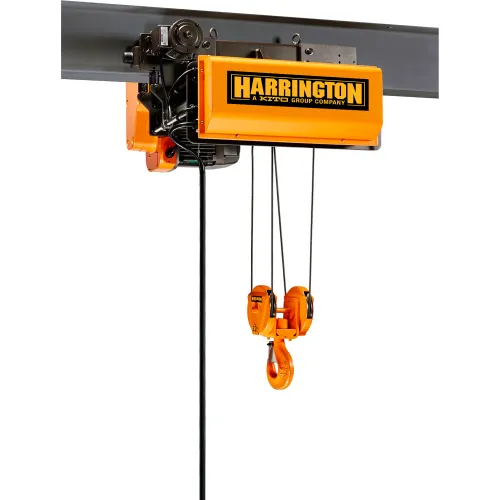

Harrington RY 5 Ton Dual Speed Electric Wire Rope Hoist And Trolley, 33' Lift, 26/4.3 FPM, 460V
Model #: WBB2332691
MPN #: RYU050B33HDD4
RY Wire Rope Hoist, Dual Speed Hoist And Trolley, 5 Ton, 33' Lift, 460V
Features:
Features:
- UL Listed
- VFD control hoist & trolley
- No load high speed function
- Premium wire rope (IWRC, plastic coated core)
- Full 360 rope guide
- Rope drum
- High performance pull rotor motor brake
- Externally adjustable upper/lower limit switch
- Electronic overload limiter
- Standard upper emergency paddle limit
- Heavy duty fan cooled hoist motor
- Standard rubber trolley bumpers
- Externally adjustable trolley motor & brake
- Electronic thermal motor protection
- Count hour meter
- Standard guide rollers
- Built in drop stops
Weights & Dimensions
| Weight Capacity | 10000 lbs |
| Weight | 1092 lbs |
| Flange Width | 4-9/10 to 13-3/4 in |
| Lift | 33 ft |
| Hook Opening | 1.8 in |
| Cable Diameter | 1/3 in |
| Travel Speed | 66/11 ft |
| Head Room | 23-1/5 in |
| Lift Speed | 26/4.3 ft/min |
Product Details
| Assembly Required | No |
| Number of Speeds | 2 |
| Clutch | Friction |
| Material | Steel |
| Phase | 3 |
| Brake | Pull-Rotor |
| Manufacturers Part Number | RYU050B33HDD4 |
| Brand | Harrington |
| Type | Wire Rope Hoist |
| Horsepower | 10-7/10 HP |
| Color | Yellow |
| Series | RY |
| Hertz | 50/60 Hz |
| Duty Rating | H4 |
| Voltage | 460 V |
| Trolley Configuration | Motorized Trolley |
| Chain Falls | 4/1 |
Warranty
| Warranty | 5 yr |
Compliance & Certifications
| Certifications | UL |
