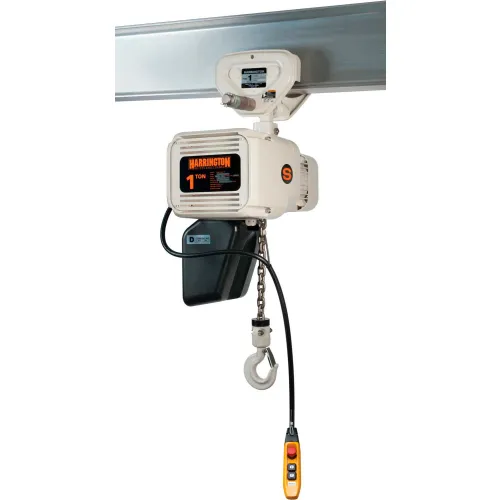

Harrington NERP010L-FG-10 NER Food Grade Hoist with Push Trolley 1 Ton Capacity, 208V
Model #: WBB1797520
MPN #: NERP010L-FG-10
Harrington NERP010L-FG-10 NER Food Grade Hoist with Push Trolley 1 Ton Capacity
Food grade hoist customized to fit your needs - Harrington's NER food grade electric hoists were carefully designed for food processing or food packaging applications. The hoists offer RoHS compliance, and its food grade lubricants comply with FDA standards, making them the perfect choice for any facility where incidental contact with product is a concern. This three phase electric hoist includes all of the top quality features of our standard NER hoist and can be coupled with a push, geared or motorized trolley.
Safe and Efficient - Standard Food Grade Features
- 1/4 - 2 Ton capacities
- Food grade oil and grease
- White epoxy paint for hoists, trolleys, hooks and suspenders
- Nickel-plated load chain
- Lubricants comply with FDA standards
- ASME H4 classification
- Features stainless steel and nickel-plated components
Applications
- Food handling
- Food processing facilities
- Lift, support and discharge bulk materials
- A variety of processing industries
Weights & Dimensions
| Length | 10 in |
| Width | 9 in |
| Height | 18-1/2 in |
| Weight Capacity | 2000 lbs |
| Weight | 125 lbs |
| Load Chain Diameter | 7.7 x 1 mm |
| Beam Width | 2.28 to 5.00 in |
| Lift | 10 ft |
| Min Radius Curve | 51.2 in |
| Hook Opening | 1.2 in |
| Wheel Diameter | 2.80 in |
| Head Room | 18-1/2 in |
| Lift Speed | 14 ft/min |
Product Details
| Duty Cycle | 60 Min. Motor |
| Material | Die-Cast Aluminum |
| Operation | Electric |
| Phase | 3 |
| Manufacturers Part Number | NERP010L-FG-10 |
| Suspension | Lug |
| Brand | Harrington |
| Type | Food Grade w/ Push Trolley |
| Horsepower | 1-1/5 HP |
| Color | White |
| Series | NER |
| Hertz | 60 Hz |
| Duty Rating | H4 |
| Voltage | 208 V |
| Package Quantity | 1 |
| Description | Electric Hoist |
| Operating Conditions | -4#176;F to 104#176;F |
Warranty
| Warranty | 3 yr |
Compliance & Certifications
| Certifications | FDA, RoHS |
