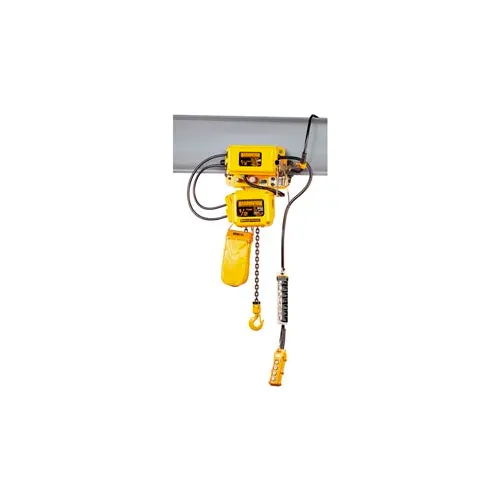

Harrington SNER 1 Ton, Electric Chain Hoist W/ Motor Trolley, 15' Lift, 7 FPM, 115V

  • Sale
  • $11,853.00


Harrington SNER 1 Ton, Electric Chain Hoist W/ Motor Trolley, 15' Lift, 7 FPM, 115V

Model #: WBB440575

MPN #: SNERM010L-L-15

The SNERM series for electric chain hoist from Harrington furnishes single-phase operation in a heavy duty, low-headroom design with a motorized trolley. Features include extreme duty motor exceeding ASME H4 duty rating, extremely durable and reliable pull-rotor motor brake, cast iron chain guide, completely sealed body and grade 80 nickel plated chain. Trolley features include an extremely durable and reliable pull-rotor brake, drop stops and rubber bumpers and side guide rollers for smoother trolley motion and reduced beam wear. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

Weights & Dimensions

Weight Capacity 2000 lbs
Weight 251 lbs
Control Cord Length 11 ft
Flange Width 2-9/32 to 5 in
Lift 15 ft
Travel Speed 40 ft
Head Room 16-1/2 in
Lift Speed 7 ft/min

Product Details

Assembly Required Yes
Number of Speeds 1
Clutch Friction
Material Die-Cast Aluminum Body
Phase 1
Brake DC Current
Manufacturers Part Number SNERM010L-L-15
Brand Harrington
Type Chain Hoist
Horsepower 1-1/8 HP
Color Yellow
Series SNER
Hertz 60 Hz
Voltage 115 V
Trolley Configuration Motorized Trolley
Control 110V Push Button Control Pendant
Operating Conditions -4°F to 104°F

Warranty

Warranty 1 yr
