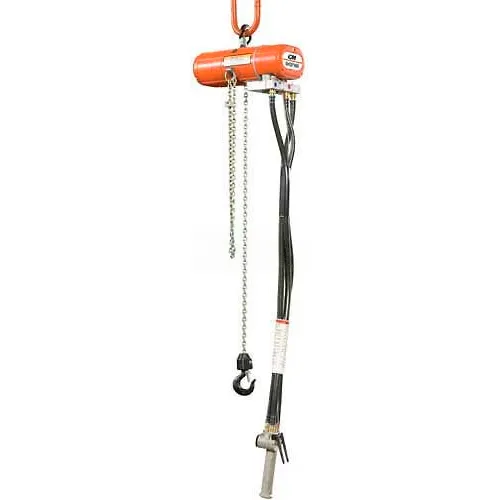

CM ShopAir Chain Hoist, 500 Lbs., 10 Ft. Lift, 21 FPM Lift, 55 FPM Lower
Model #: WBB1299629
MPN #: 2182
Additional features and benefits include:
- Standard ProtectorTM overload device.
- 10-pocket, oblique lay liftwheel provides longer chain life.
- Epoxy powder coat finish provides a durable exterior.
- Durable reduction gearing means reliable operation
- Variable flow, two lever pendant for precise load spotting.
- Threaded external exhaust for piping away exhaust in clean room or painting applications.
Weights & Dimensions
| Length | 12-27/32 in |
| Width | 5-15/16 in |
| Height | 4-1/16 in |
| Weight Capacity | 500 lbs |
| Weight | 33 lbs |
| Control Cord Length | 6 ft |
| Air Supply Hose Minimum Size | 1/2" I.D. |
| Head Room | 10-7/8 in |
| Lift | 10 ft |
| Lift Speed | 21 ft/min |
Product Details
| Assembly Required | No |
| Type | Chain Hoist |
| Color | Orange |
| Series | Shopair |
| Air Lubrication | 10W Machine Oil 180 SSU at 100 F |
| Air Inlet Port | 3/8" NPTF Male |
| Air Supply Requirement | 90 PSI |
| Reeving | 1 |
| Material | Aluminum Alloy |
| Package Quantity | 1 |
| Manufacturers Part Number | 2182 |
| Suspension | Hook |
| Brand | CM |
Warranty
| Warranty | Lifetime |
- Small, compact design for commercial & industrial applications.
- Industrial duty air motor for tough applications.
- Gear train is lifetime - lubricated with non-oxidizing grease.
- Hardened forged steel, latch -type lower hook rotates 360°.
- Hardened forged steel, rigid latch - type upper hook.
- Rugged cast aluminum alloy hoist frame.
- Alloy load chain.
- Maximum pendant drop - 36 ft.
- Lifetime warranty against defects in materials and workmanship.
- Made in U.S.A.
