MAXTEC Test Lung: 600 mL Volume - Max, 11 13/16 in Overall Lg, 1 11/16 in Overall Dp, 5 cm H20/L/sec
Item 33JV39
Mfr. Model R500P19

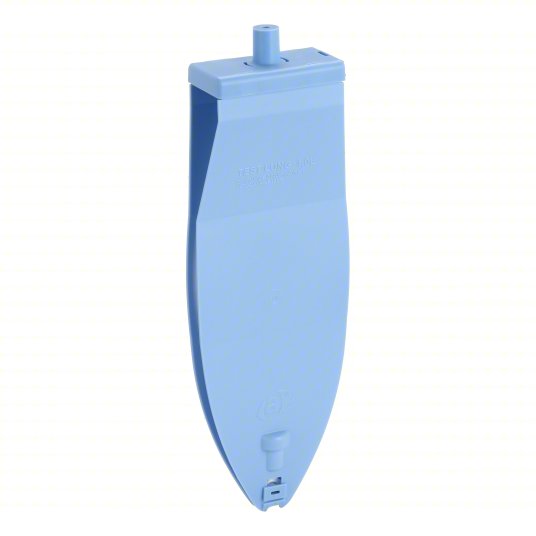

Test lungs are inflatable bags calibrated for accuracy to verify that the volume and pressure applied by medical ventilators match with expected values. They are commonly used along with a gas flow analyzer as part of a testing system for performing regular checks of ventilators and anesthesia machines.
Brand
MAXTEC
MAXTEC
Manufacturer Part Number
R500P19
R500P19
Product Type
Test Lung
Test Lung
Volume - Maximum
600 mL
600 mL
Resistance
5 cm H20/L/sec
5 cm H20/L/sec
Compliance
0.02 L/cm H20
0.02 L/cm H20
Overall Depth
1-11/16 in
1-11/16 in
Overall Length
11-13/16 in
11-13/16 in
Overall Width
3-15/16 in
3-15/16 in
Manufacturers Warranty Length
12 mo
12 mo
UNSPSC
42251622
42251622
Country of Origin
Taiwan
Taiwan
