Contrx Wall-Mount Full Cantilever Jib Crane, 500 Lb. Capacity, 12' Span

  • Sale
  • $3,077.00


Contrx Wall-Mount Full Cantilever Jib Crane, 500 Lb. Capacity, 12' Span

Model #: WBB2157123

MPN #: WMCC512

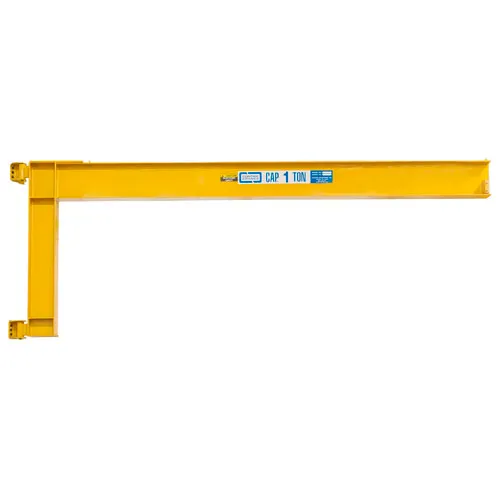

Contrx full 180 degree cantilever wall-mount jib cranes are constructed out of high grade steel components and are designed for trouble-free industrial use. The hinges are equipped with self-lubricating Teflon bearings and hardened pins. The boom has 180 degrees of manual rotation. This style of wall mount is ideal when maximum head room is needed for lifting applications. Mount at any height on wall, column, or building support. Designed for indoor use, and can be custom-modified for most outdoor applications. Primed and finish in safety yellow enamel. Made in USA

Weights & Dimensions

Weight Capacity 500 lbs
Span 12'
Flange Width 3-3/8 in
Hinge (H x W) 7 x 6 in
Bolt Hole Diameter 9/16 in
Boom Length 12 ft
I-Beam Height 6 in

Product Details

Assembly Required Yes
Type Wall Mounted Jib Crane
Hinge Spacing 4 ft
Thrust & Pull 2425 lbs
Color Yellow
Material Steel
Manufacturers Part Number WMCC512
Brand Contrx

Warranty

Warranty 1 yr
