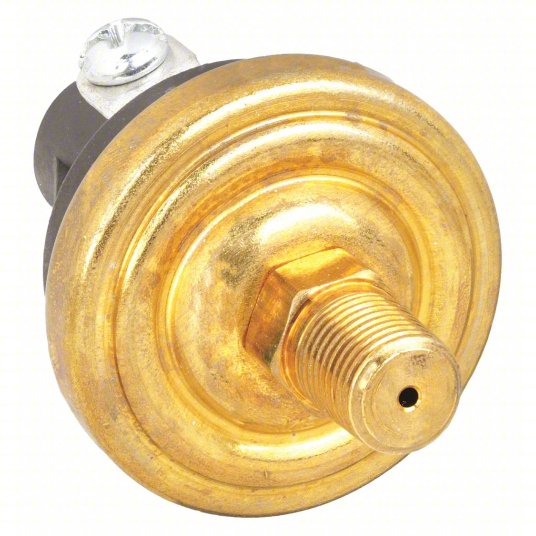

HONEYWELL Pressure Switch: 0.5 psi – 150 psi, 1/8" NPT, 1NO
Item 23Z346
Mfr. Model 76055-B00001000-01
Compact pressure switches connect to a pressurized system, monitor system pressure, and make or break an electrical connection when pressure rises above or falls below the setpoint. Their compact design allows them to fit in confined spaces where standard pressure switches cannot be installed. They are commonly used to control equipment operation and maintain pressure within a specified range.
Brand
HONEYWELL
HONEYWELL
Manufacturer Part Number
76055-B00001000-01
76055-B00001000-01
AC Contact Rating
0.5 A @ 240 V; 1 A @ 120 V
0.5 A @ 240 V; 1 A @ 120 V
Actuator Style
Diaphragm
Diaphragm
Contact Form
1NO
1NO
DC Contact Rating
15 A @ 6 V; 4 A @ 24 V; 8 A @ 12 V
15 A @ 6 V; 4 A @ 24 V; 8 A @ 12 V
Deadband Adjustability
Adjustable
Adjustable
Differential Pressure - Maximum
150 psi
150 psi
Differential Pressure - Minimum
91 psi
91 psi
Display Qty
1
1
Display Sell UOM
EA
EA
IP Rating
IP54
IP54
NEMA Enclosure Rating
Not Rated
Not Rated
Operating Temperature - Maximum
250 °F
250 °F
Operating Temperature - Minimum
-40 °F
-40 °F
Overall Height
2.3 in
2.3 in
Overall Width
1.47 in
1.47 in
Pressure - Maximum
150 psi
150 psi
Pressure - Minimum
0.5 psi
0.5 psi
Pressure Connection Type
1/8" NPT
1/8" NPT
Proof Pressure
500 psi
500 psi
Series
5000
5000
UNSPSC
39121506
39121506
Country of Origin
Mexico
Mexico
