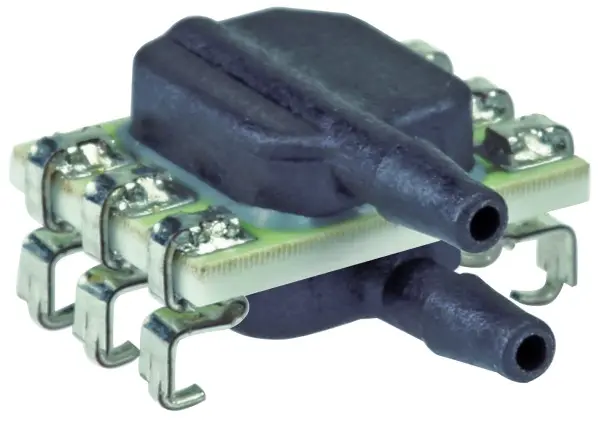

Honeywell-Pressure Sensor -5psi to 5psi Differential 6-Pin SMD Module-ABPMRRN005PD2A3
| Honeywell | ||
| Product Category: | Board Mount Pressure Sensors | |
| RoHS: | ||
| Differential | ||
| - 5 psi to 5 psi | ||
| 0.25 % | ||
| Digital | ||
| SMD/SMT | ||
| I2C | ||
| Dual Radial Barbed, Same Side | ||
| 12 bit | ||
| - 40 C | ||
| + 85 C | ||
| abp | ||
| Brand: | Honeywell | |
| Product Type: | Board Mount Pressure Sensors | |
| 50 | ||
| Subcategory: | Sensors | |
| Supply Voltage - Max: | 3.3 V | |
| Tradename: | ||
| Unit Weight: | 0.024000 oz |
-
Supplier:Honeywell
-
Part No:ABPMRRN005PD2A3
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:90262000
-
COO:CN
-
ECCN:EAR99
-
Supplier Standard Pack:50
-
Mounting:PCB Surface Mount
-
Accuracy:±0.25 %
-
Device Pressure Type:Differential
-
Operating Pressure Range:-5 to 5 psi
-
Media:Air
-
Output Voltage:I²C
-
Response Time:0.46 mS
-
Typical Operating Supply Voltage:3.3 V
-
Operating Temperature:-40 to 85 °C
-
Dimension:12.75 x 11 mm
ABPMRRN005PD2A3 Datasheet (PDF)
