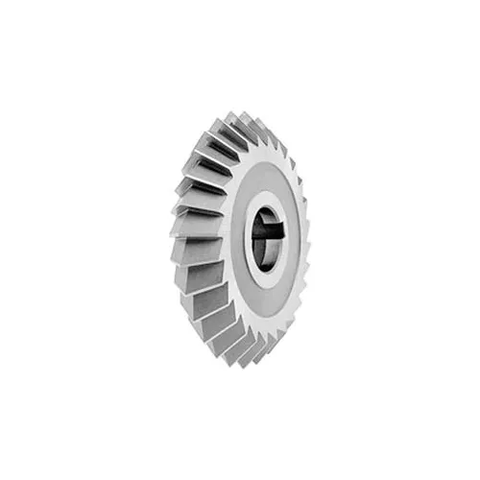

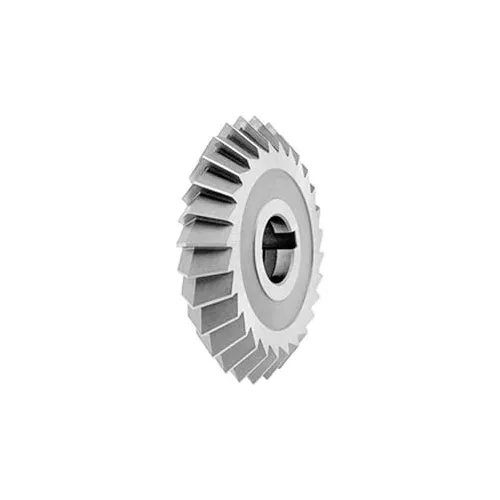

60 ° HSS Import Double Angle Cutter, 2-3/4" DIA x 1/2" Face x 1" Hole
Model #: WBB557783
MPN #: 2552323
High Speed Steel TMX Double Angle Arbor Mounted Side Milling Cutter. 60° HSS TMX Double Angle Cutter, 2-3/4" diameter x 1/2" face width x 1" hole size x 18 teeth.
- Designed to cut an included angle in the part
Weights & Dimensions
| Fractional Diameter | 2-3/4" |
| Thickness | 1/2 |
| Hole Size | 1 in |
| Diameter | 2-3/4 in |
| Cutter Width | 1/2" |
| Hole Diameter | 1" |
Product Details
| Type | Double Angle |
| Angle | 60° |
| Style | Arbor |
| Material | HSS |
| Description | Milling Cutter |
| Manufacturers Part Number | 2552323 |
| Number of Teeth | 18 |
