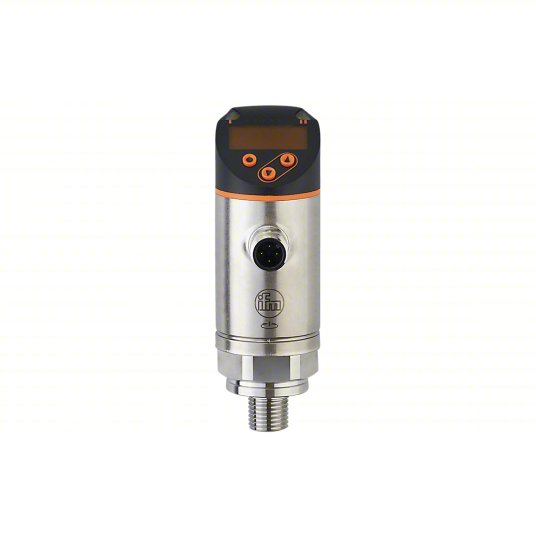

IFM Digital Switch: 0 psi – 362 psi, 1/4" NPT Connection, PN Series, PNP/NPN

Sale
$999.00

IFM Digital Switch: 0 psi – 362 psi, 1/4" NPT Connection, PN Series, PNP/NPN

Item 413LE8

Mfr. Model PN7693

Positive pressure switches connect to pressurized systems, monitor system pressure, and respond to changes that exceed their setpoints by making or breaking an electrical connection. They are used to control equipment, activate alarms, and monitor pressure conditions in industrial and commercial systems.

Brand
IFM

Manufacturer Part Number
PN7693

Burst Pressure
5,075 psi

Communication Interface
IO-Link

Compatible Media
Gas; Liquid

Contact Form
1NO/1NC

Digital Signal Output
PNP/NPN

Display Qty
1

Display Sell UOM
EA

Electrical Connection Type
4-Pin M12 Male Connector

Housing Material
316 Stainless Steel; PBT; Polycarbonate

IP Rating
IP65; IP67

Number of Outputs
2

Operating Temperature - Maximum
176 °F

Operating Temperature - Minimum
-13 °F

Output Current Rating
150 mA; 200 mA; 250 mA

Overall Height
90.7 mm

Pressure - Maximum
362 psi

Pressure - Minimum
0 psi

Pressure Connection Type
1/4" NPT

Series
PN

Supply Voltage Rating
30 V DC

Wetted Materials
Ceramic; FKM; Stainless Steel

Country of Origin
Germany

Specification Sheet
