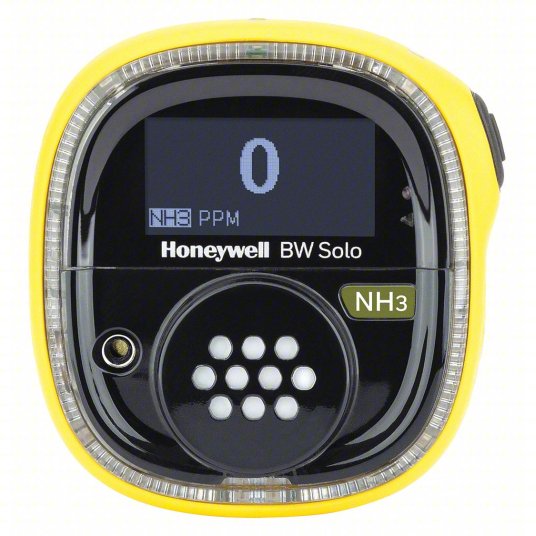

HONEYWELL Single-Gas Detector: Ammonia, 1 Sensors, Rechargeable Lithium, Maintainable, Bluetooth
Maintainable single-gas detectors monitor ambient air for the presence of a specific gas and alert the user when concentrations exceed defined levels. They are designed for serviceability, with replaceable sensors and components that extend product life.
Item 497A91
Mfr. Model BWS1-A2-Y
brand
HONEYWELL
HONEYWELL
Manufacturer Part Number
BWS1-A2-Y
BWS1-A2-Y
Alarm Setting
High 50 ppm; Low 25 ppm
High 50 ppm; Low 25 ppm
Alarm Setting Adjustment
Adjustable Alarm Setting
Adjustable Alarm Setting
Alarm Volume Level
95 dB
95 dB
Alert Type
Light; Sound; Vibration
Light; Sound; Vibration
Battery Chemistry
Lithium
Lithium
Battery Life
1 yr
1 yr
Battery Size
2/3 AA
2/3 AA
Brand & Series
HONEYWELL BW Solo
HONEYWELL BW Solo
Communication Technology
Bluetooth
Bluetooth
Configured Gas Detected
Ammonia
Ammonia
Data Logger
Yes
Yes
Display Screen Type
LCD Dot Matrix
LCD Dot Matrix
Display Type
Digital
Digital
FeaturesCompatible with Honeywell IntelliDoX; Complete with an Extensive Selection of Sensor Options; Connected Bluetooth Low Energy (BLE) Capabilities Quick Specs; Display for Multiple Languages; Serviceability; User-Friendly Operation
Hazardous Location Specification
Class I, Div 1, Group A, B, C, D
Class I, Div 1, Group A, B, C, D
Housing Color
Yellow
Yellow
IP Rating
IP68
IP68
IncludesConcussion Proof Housing; Stainless Steel Alligator Clip; Test Cap with 1 ft of Hose
Interchangeable Sensors
No
No
Manufacturer Warranty Length
3 yr
3 yr
Minimum Operating Humidity
5 %
5 %
Maximum Operating Humidity
95 %
95 %
Minimum Operating Temperature-
40 °F
40 °F
Maximum Operating Temperature
140 °F
140 °F
Measurement Range
Ammonia (0 to 1,000 ppm)
Ammonia (0 to 1,000 ppm)
Mount Type
Portable/Handheld
Portable/Handheld
Mounting Location
Portable/Handheld
Portable/Handheld
Operating Frequency
2402 to 2480 MHz
2402 to 2480 MHz
Operating Voltage
3.6V
3.6V
Overall Depth
1.4 in
1.4 in
Overall Heigh
2.7 in
2.7 in
Overall Width
2.6 in
2.6 in
Power Source
Battery
Battery
Product Type
Single-Gas Detector
Single-Gas Detector
Rechargeable Battery
No
No
Replaceable Battery
Yes
Yes
Resistance Properties
Dust Resistant; Water Resistant
Dust Resistant; Water Resistant
Resolution
1 ppm
1 ppm
Sensor Life
2 yr
2 yr
Sensor Type
Electrochemical
Electrochemical
Series
BW Solo
BW Solo
StandardsABS Type Approved 21-2143903-PDA; AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C; ATEX Sira 18ATEX2243; CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C; CSA Certified; FCC ID: SU3BWS1; IC:20969-BWS1; IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40°C≤ Tamb ≤ 60°C; INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40°C≤ Ta ≤ 60°C; RED:RE-D Directive 2014/53/EU
Status Indicator
LED
LED
Sub-brand
Honeywell; BW Solo
Honeywell; BW Solo
Supported Gas Detected
- Ammonia
- Carbon Monoxide
- Chlorine
- Chlorine Dioxide
- Ethylene Oxide
- Hydrogen
- Hydrogen Cyanide
- Hydrogen Sulfide
- Nitric Oxide
- Nitrogen Dioxide
- Oxygen
- Ozone
- Phosphine
- Sulfur Dioxide
Temperature Code
T4
T4
Visual Alert TypeRed LED
UNSPSC
46171613
46171613
Country of Origin
Mexico
Mexico
